Straight Styli
Stepped-stem Styli
Conical Base Styli
Threaded-stem Styli
Stepped-base Styli
Stepped-base, Stepped-stem Styli
Non-threaded Pin Styli
Non-threaded, Stepped-stem Pin Styli
Extended-thread Styli
Extended-thread, Stepped-stem Styli
Pointer Styli
Other Straight Styli
Filter for your desired configuration type above and for your dimensional requirments below.
Filter
Total items found: 68
#
itp Code
Description
DK mm
L mm
ML mm
ML (1) mm
DS mm
DS (1) mm
DG mm
1 TH M2 006 03 018

M2 Stepped-stem Stylus

0.6

18.3

13.8

4.6

1

0.4

3

2 TH M2 005 03 010

M2 Stepped-stem Stylus

0.5

10.25

4.25

3.25

0.7

0.4

3

3 TH M2 002 03 010

M2 Stepped-stem Stylus

0.2

10.15

4.15

2.3

1

0.18

3

4 TH M2 002 03 017

M2 Stepped-stem Stylus

0.2

17

12.5

2.3

1

0.18

3

5 TH M2 0025 03 017

M2 Stepped-stem Stylus

0.25

17

12.5

2.3

1

0.18

3

6 TH M2 008 03 018

M2 Stepped-stem Stylus

0.8

18

13.5

4.8

1

0.6

3

7 TH M2 0025 03 010

M2 Stepped-stem Stylus

0.25

10.15

4.15

2.3

1

0.18

3

8 TH M2 010 03 018

M2 Stepped-stem Stylus

1

18.5

14

5

1

0.8

3

9 TH M2 003 03 010

M2 Stepped-stem Stylus

0.3

10.15

4.15

2.15

0.7

0.2

3

10 TH M2 005 03 018

M2 Stepped-stem Stylus

0.5

18

13.5

2.5

1

0.3

3

11 TH M2 003 03 018

M2 Stepped-stem Stylus

0.3

18

13.5

2.3

1

0.2

3

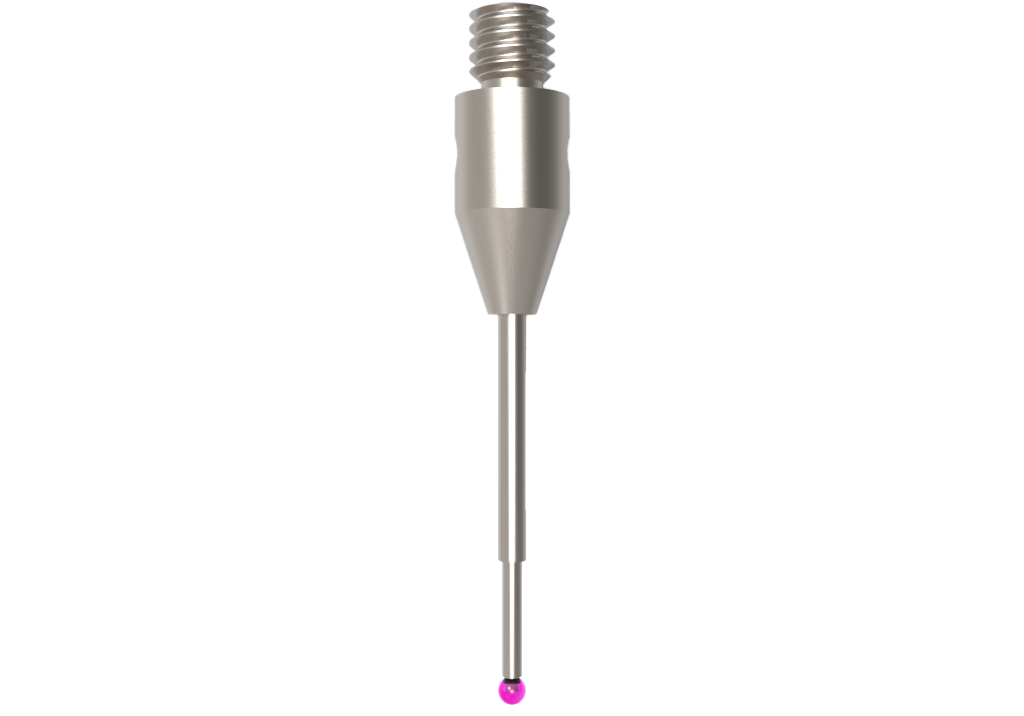

12 TH M3 010 H4 021

M3 Stepped-stem Stylus

1

21.5

14

5

1

0.8

4

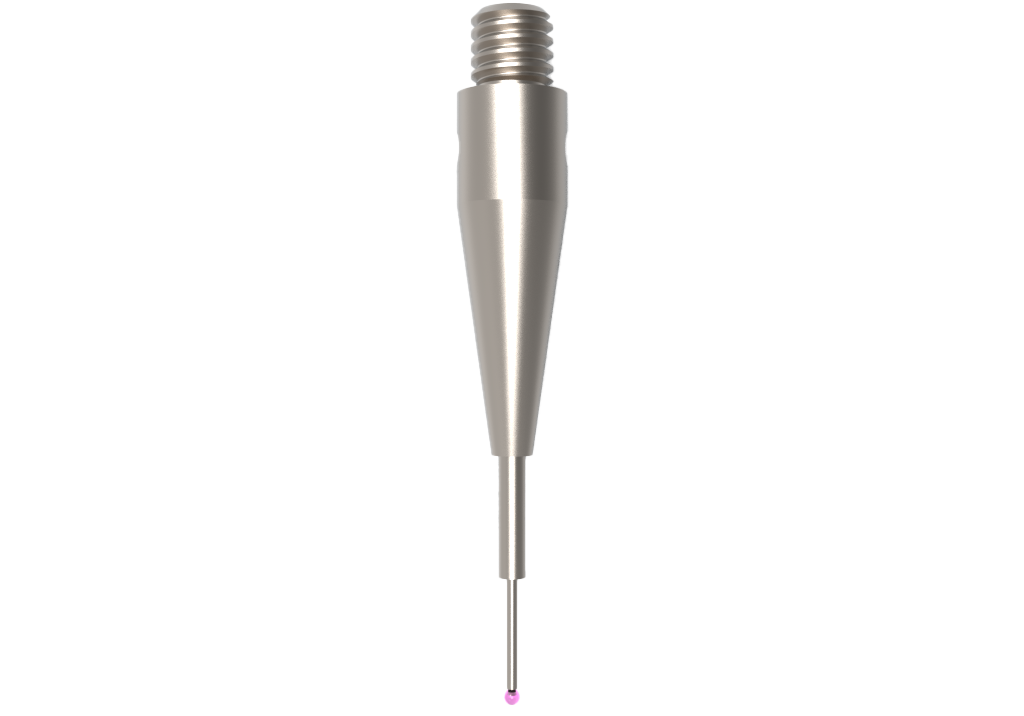

13 TH M3 006 04 022

M3 Stepped-stem Stylus

0.6

22

9

4.6

1

0.4

4

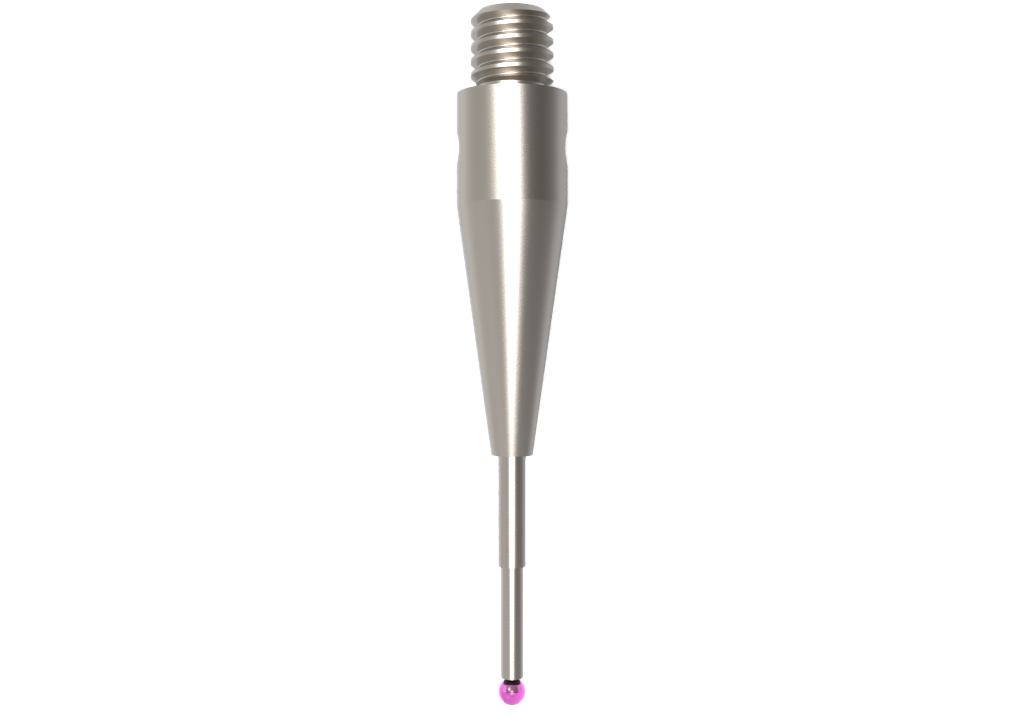

14 TH M3 010 04 022

M3 Stepped-stem Stylus

1

22

9

5

1

0.8

4

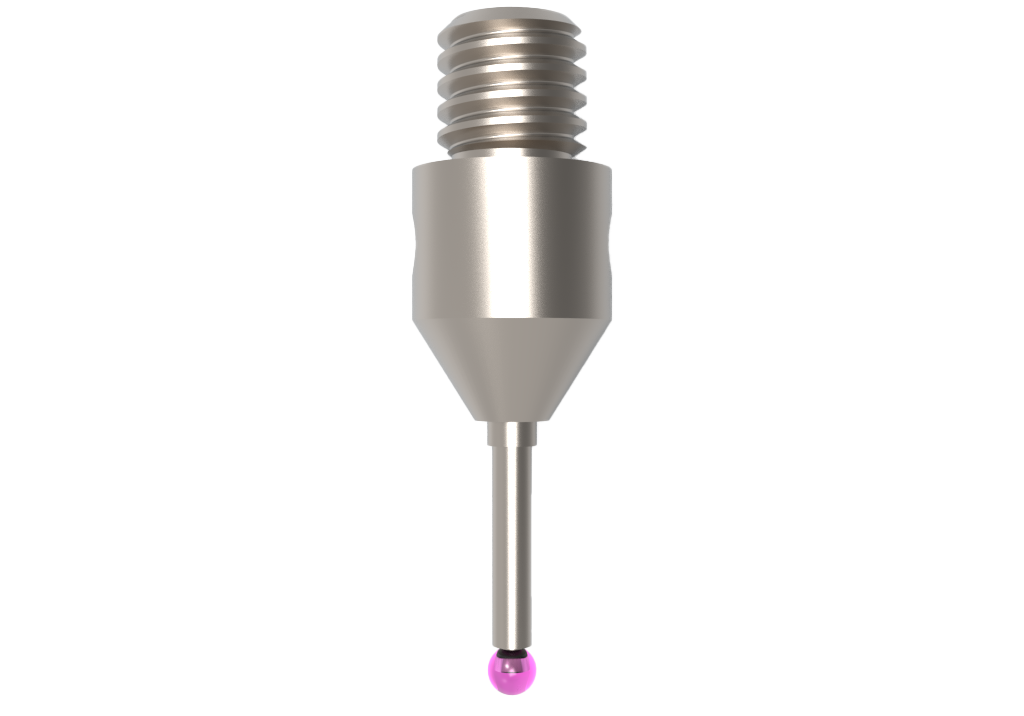

15 TH M3 010 04 010

M3 Stepped-stem Stylus

1

10.5

5.5

5

1

0.8

4

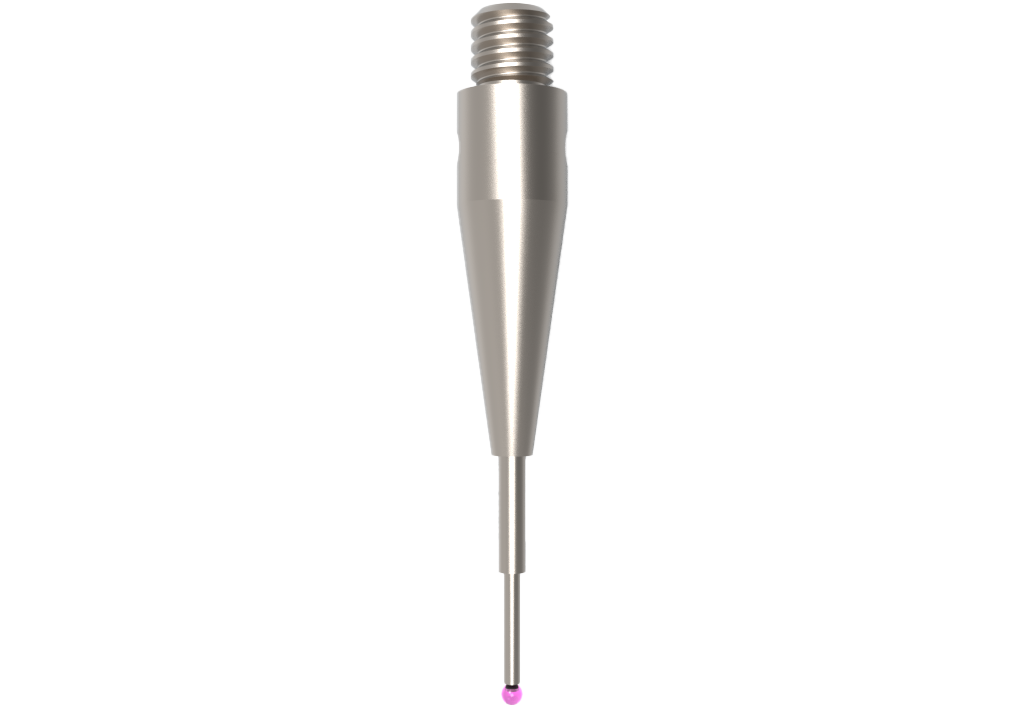

16 TH M3 008 04 022

M3 Stepped-stem Stylus

0.8

22

9

4.8

1

0.6

4

17 TH M3 005 04 022

M3 Stepped-stem Stylus

0.5

21.25

11.25

2.5

1

0.3

4

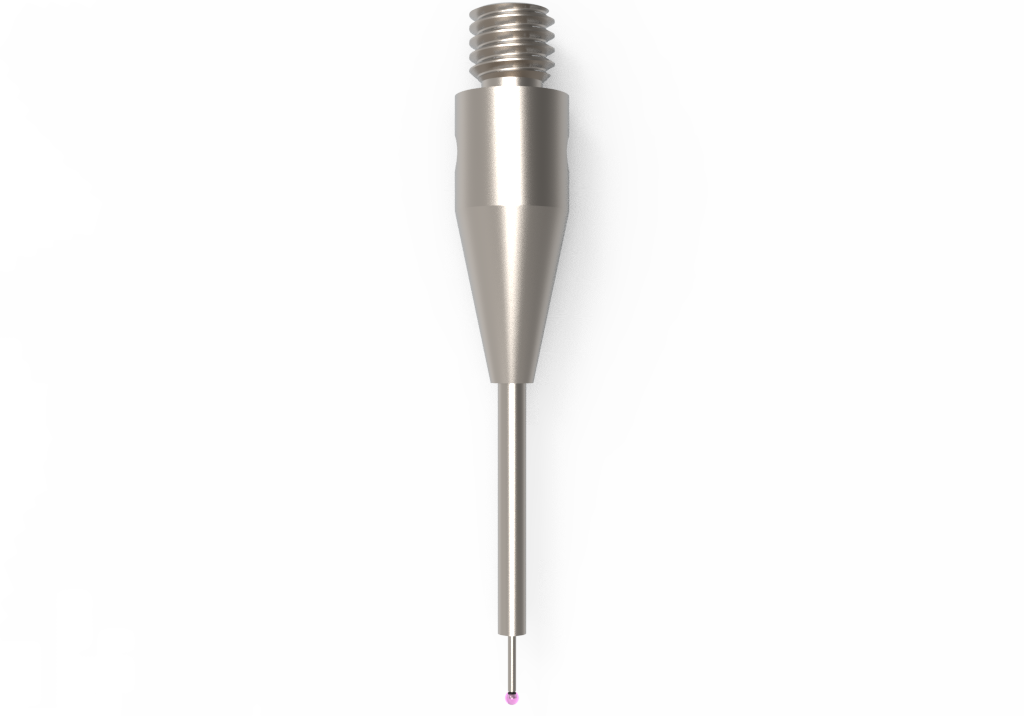

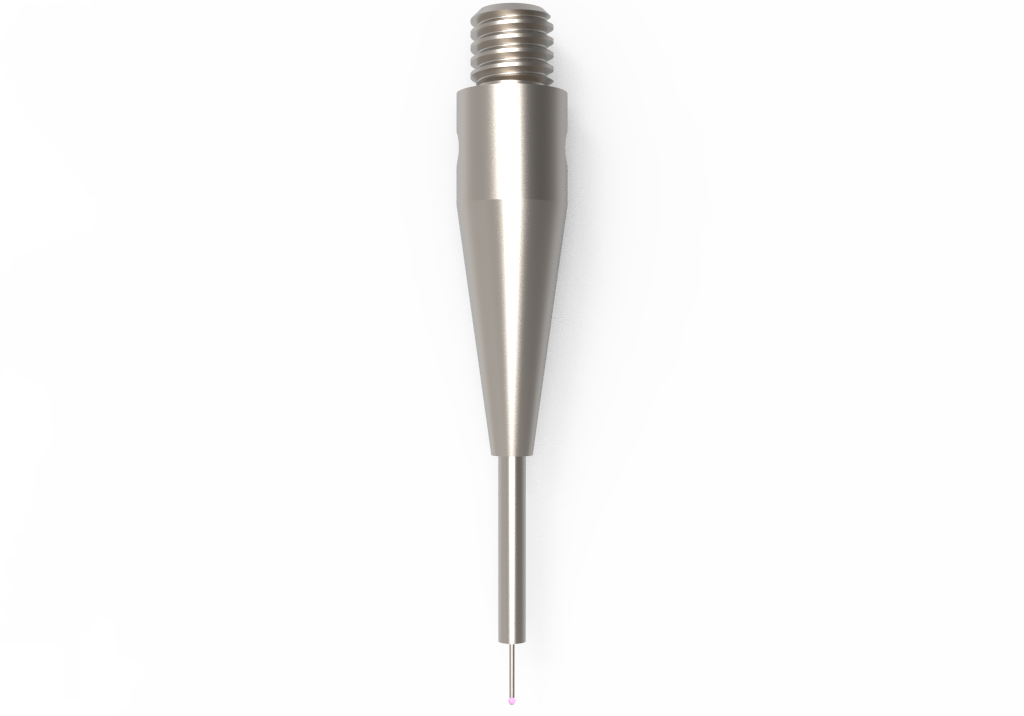

18 TH M3 003 04 022

M3 Stepped-stem Stylus

0.3

22

9

2.3

1

0.2

4

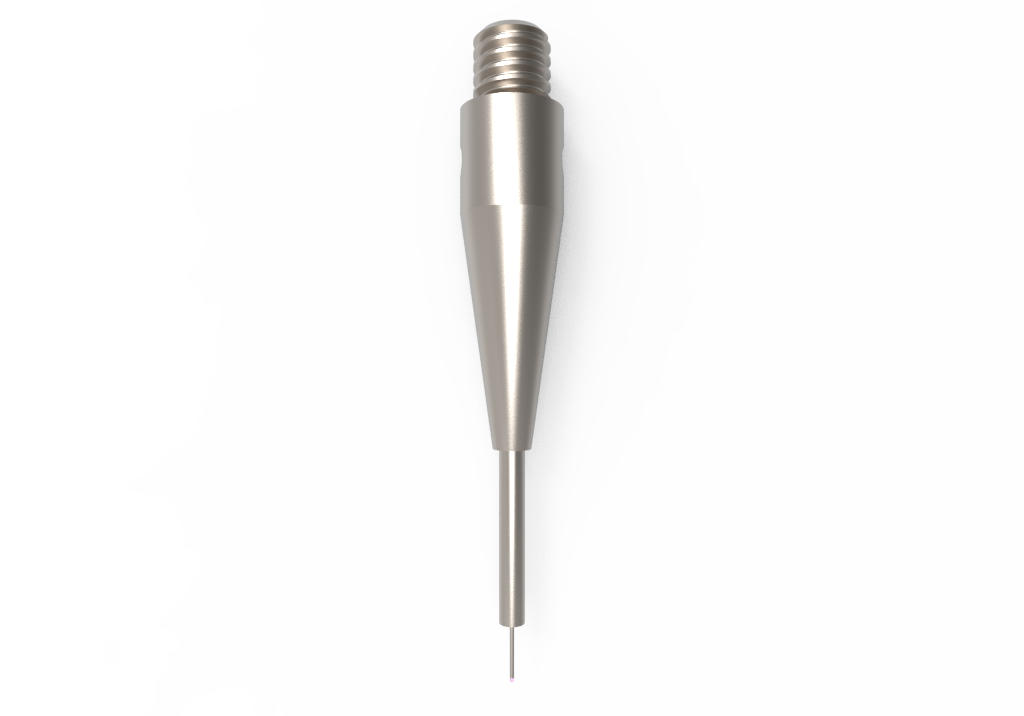

19 TH M3 002 04 022

M3 Stepped-stem Stylus

0.2

22

9

2.3

1

0.18

4

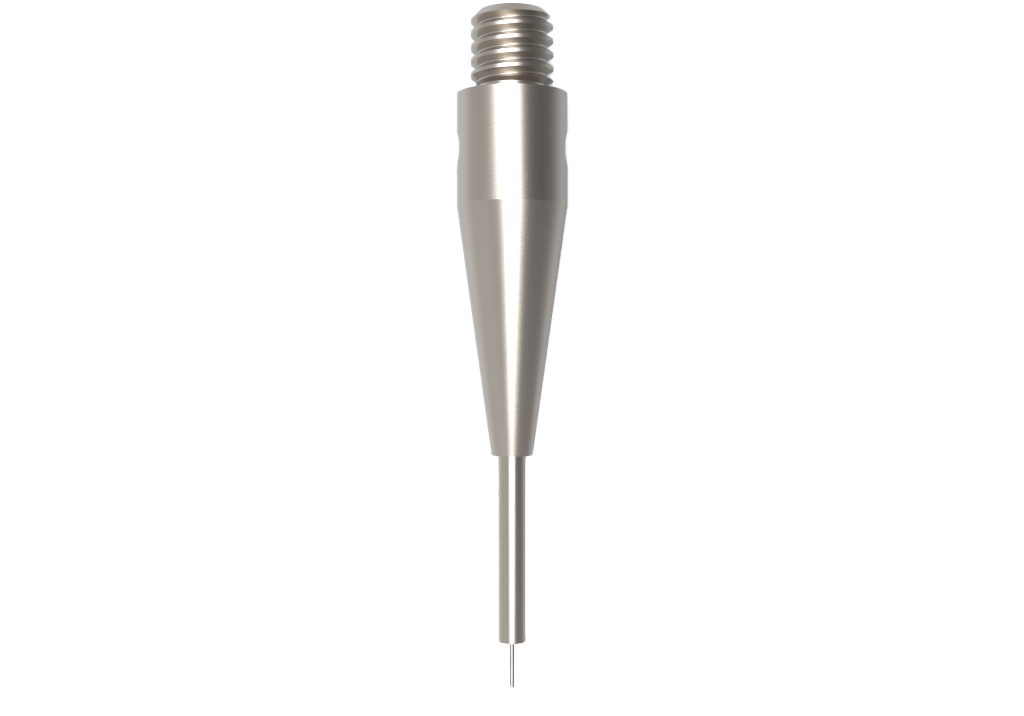

20 TH M3 0025 04 022

M3 Stepped-stem Stylus

0.25

22

9

2.3

1

0.18

4

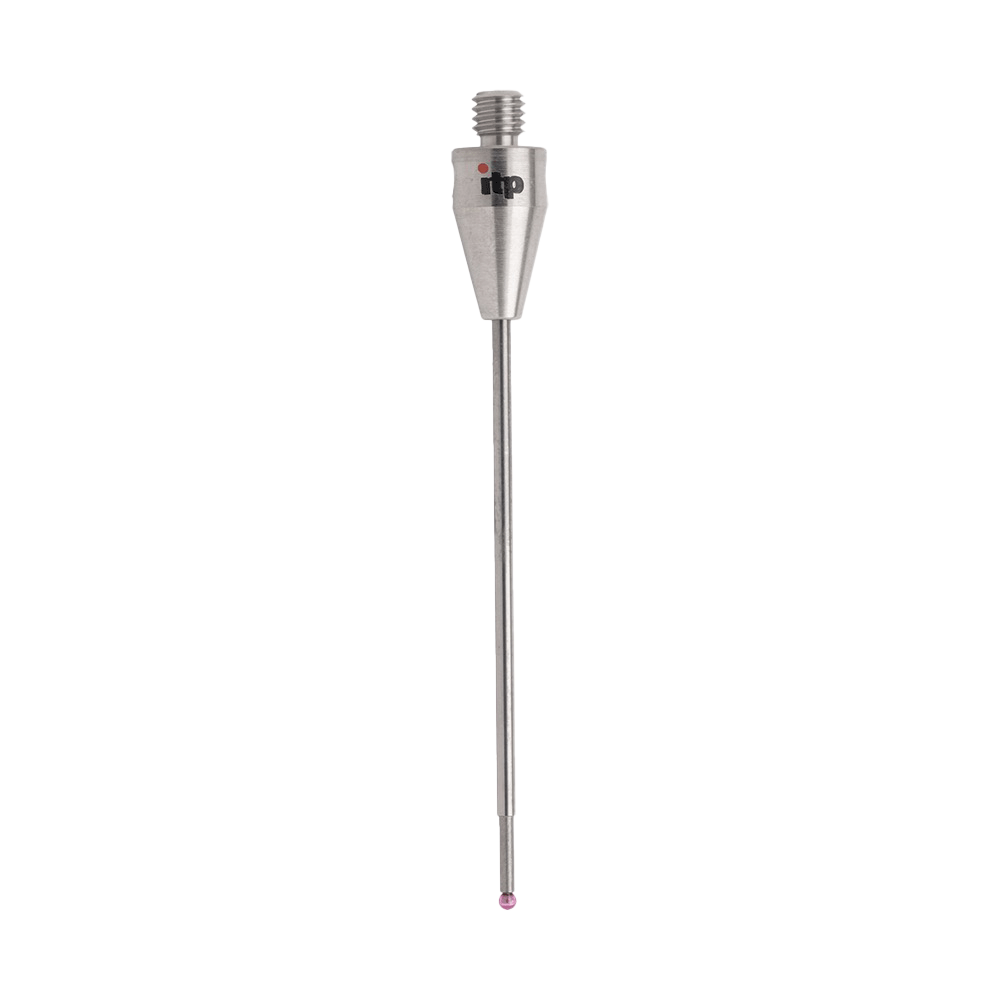

21 TH M3 008 05 034

M3 XXT Stepped-stem Stylus

0.8

34

25

4.1

1

0.6

5

22 TH M3 005 05 020

M3 XXT Stepped-stem Stylus

0.5

20

11

2.3

1

0.3

5

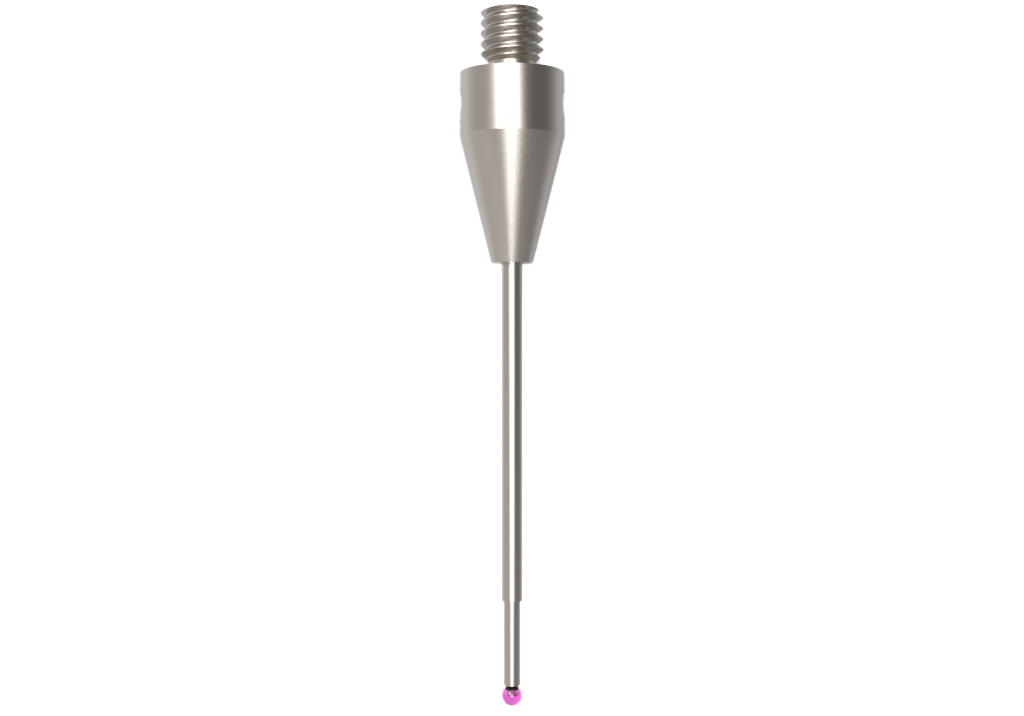

23 TH M3 010 05 030

M3 XXT Stepped-stem Stylus

1

30

21

5

1

0.8

5

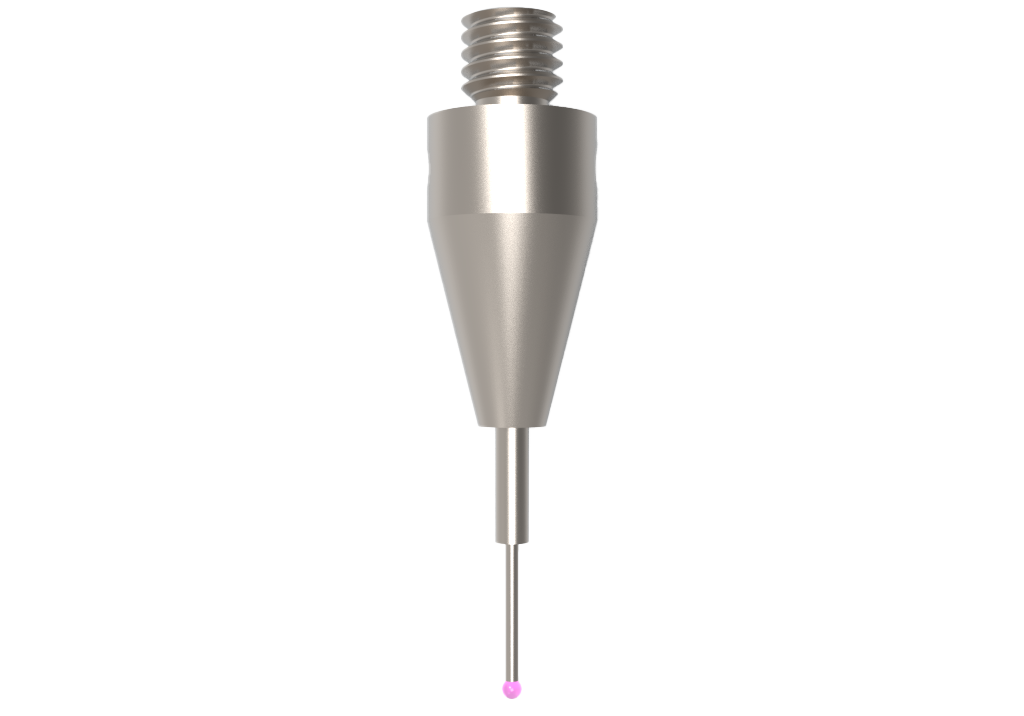

24 TH M3 006 05 017

M3 XXT Stepped-stem Stylus

0.6

17

8

4.6

1

0.4

5

25 TH M3 010 05 020

M3 XXT Stepped-stem Stylus

1

20

11

5.1

1

0.6

5

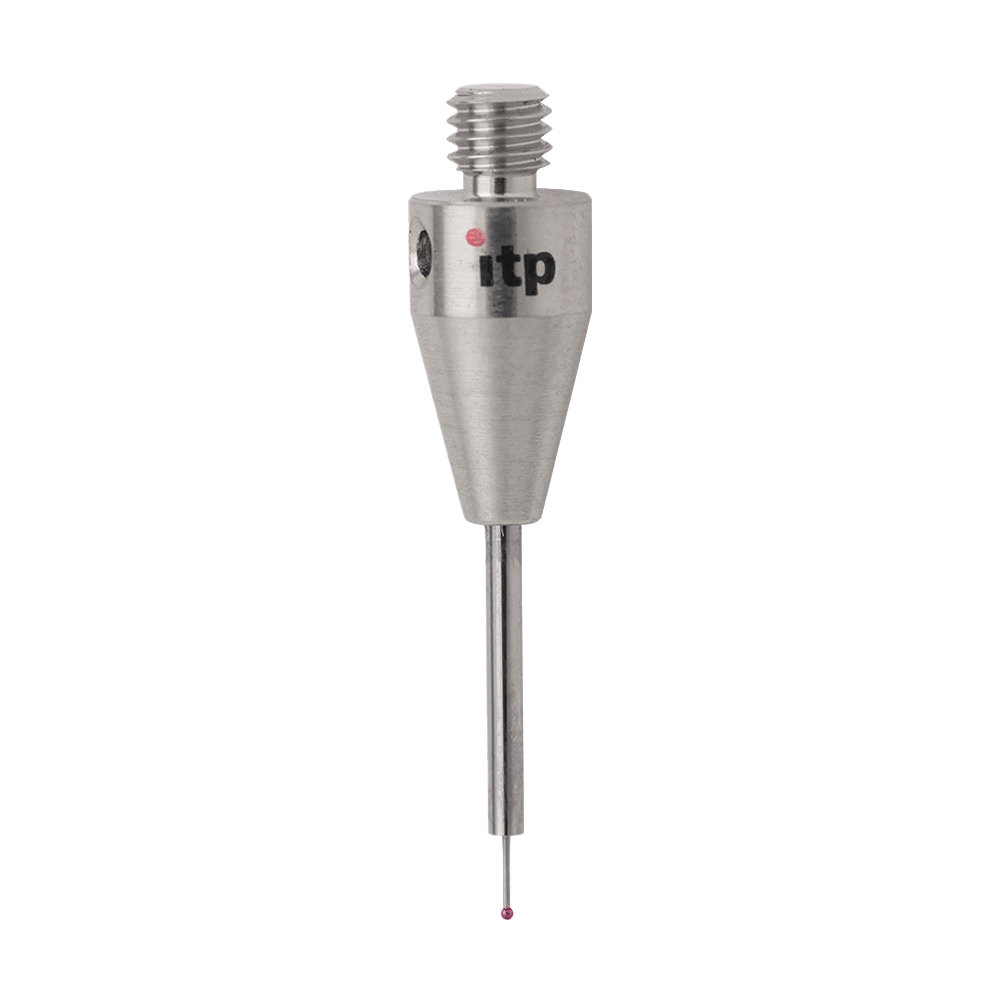

26 TH M3 003 05 020

M3 XXT Stepped-stem Stylus

0.3

20

11

2.3

1

0.2

5

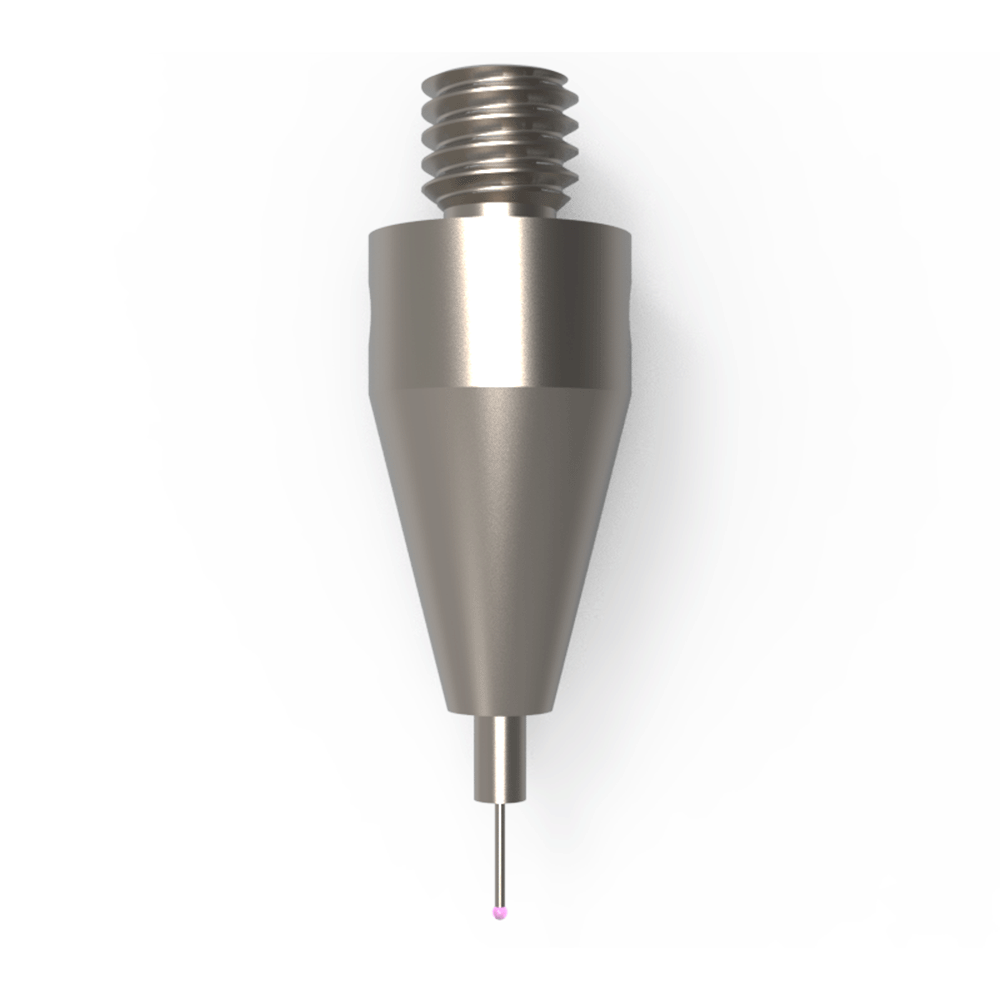

27 TH M3 003 05 013

M3 XXT Stepped-stem Stylus

0.3

13

4

2.3

1

0.2

5

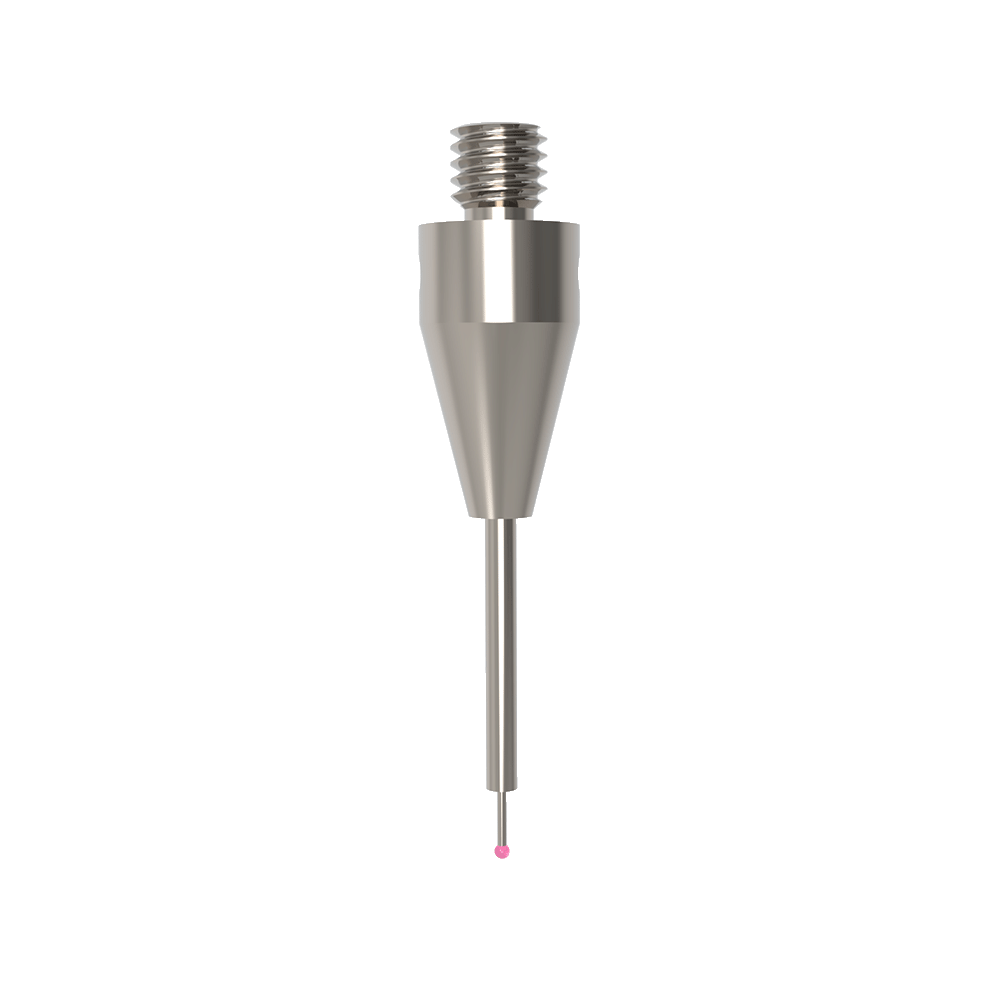

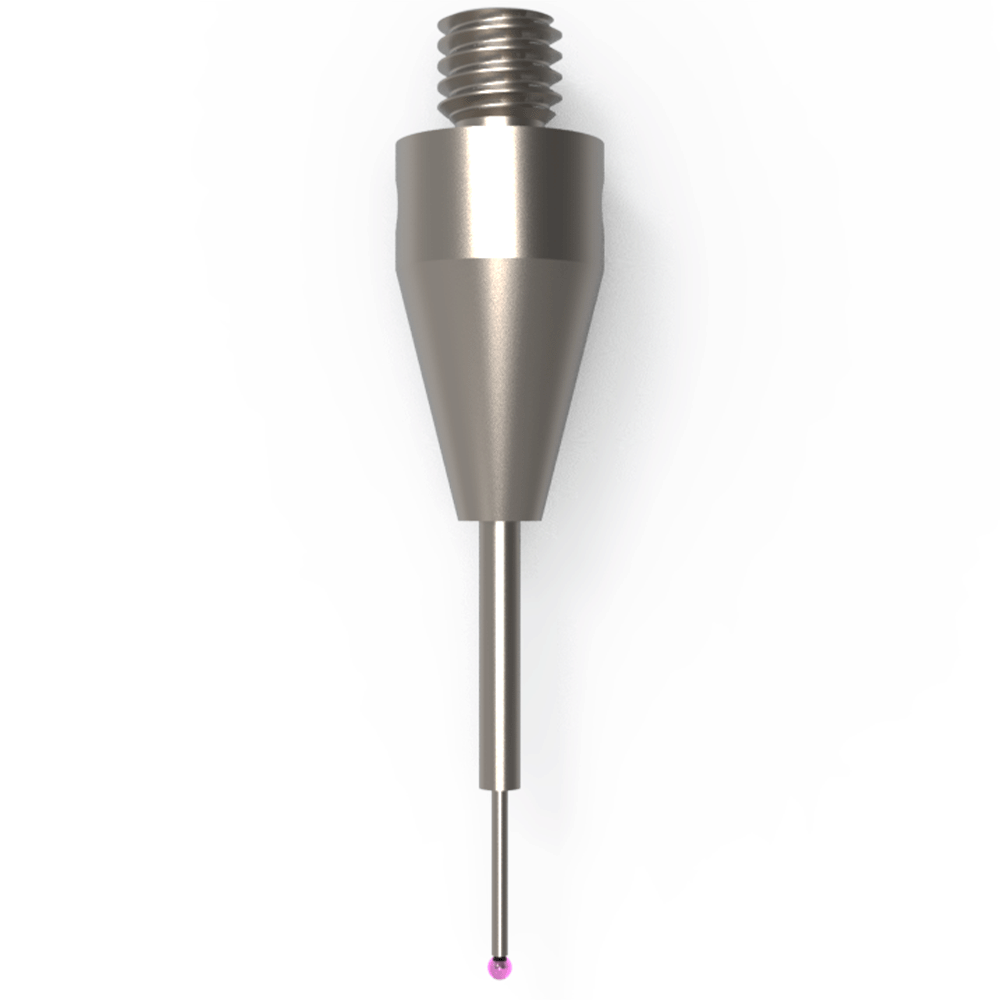

28 TH M3 006 05 020

M3 XXT Stepped-stem Stylus

0.6

20

11

4.6

1

0.4

5

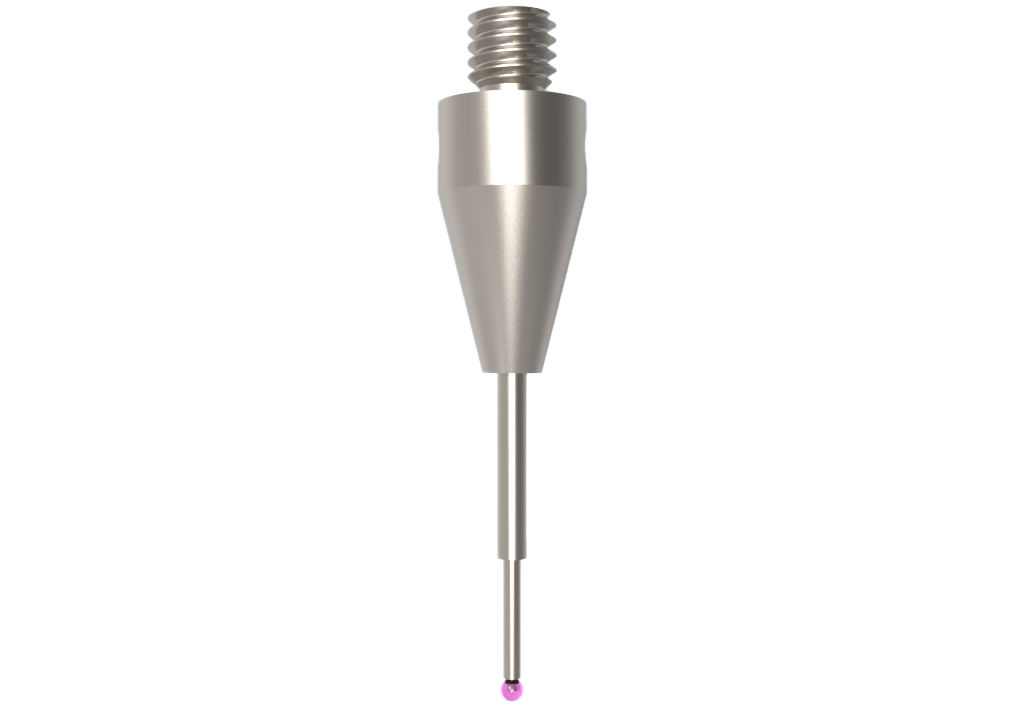

29 TH M3 008 05 020

M3 XXT Stepped-stem Stylus

0.8

20

11

4.8

1

0.6

5

30 TH M3 010 05 040

M3 XXT Stepped-stem Stylus

1

40

31

5

1

0.8

5

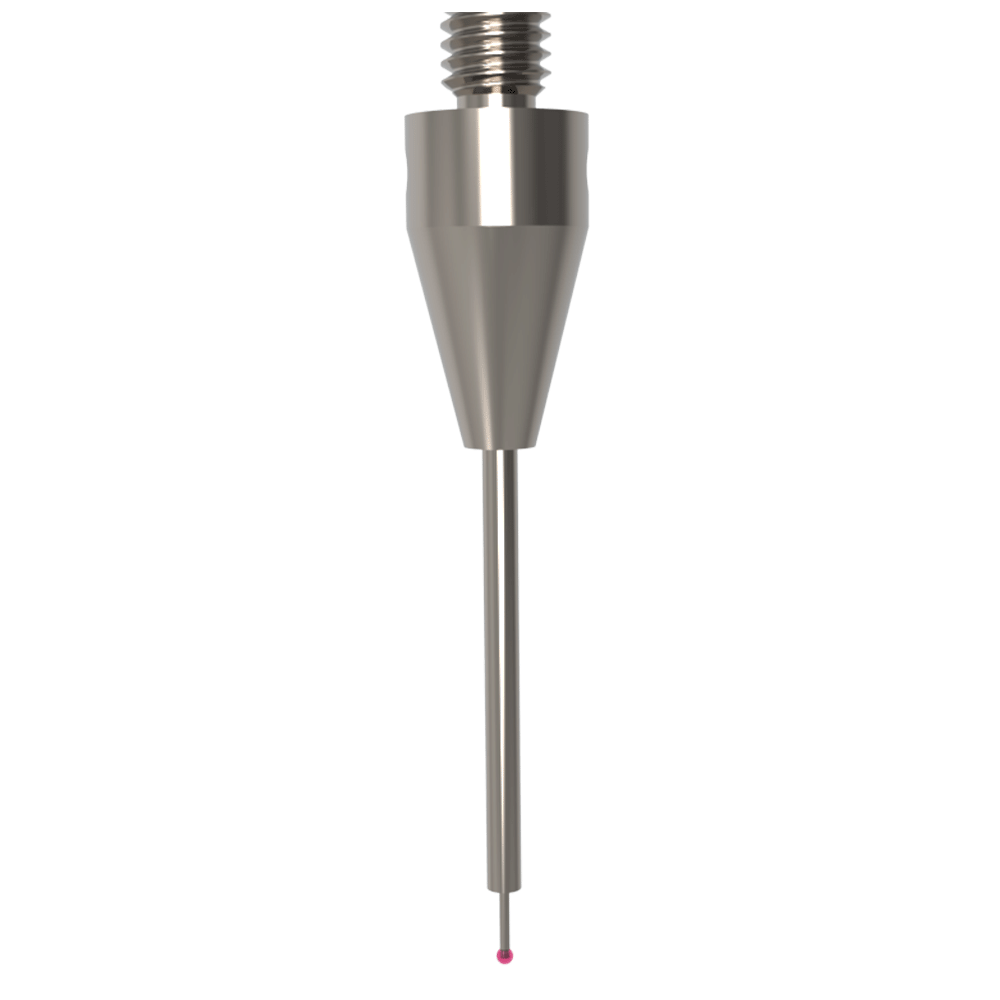

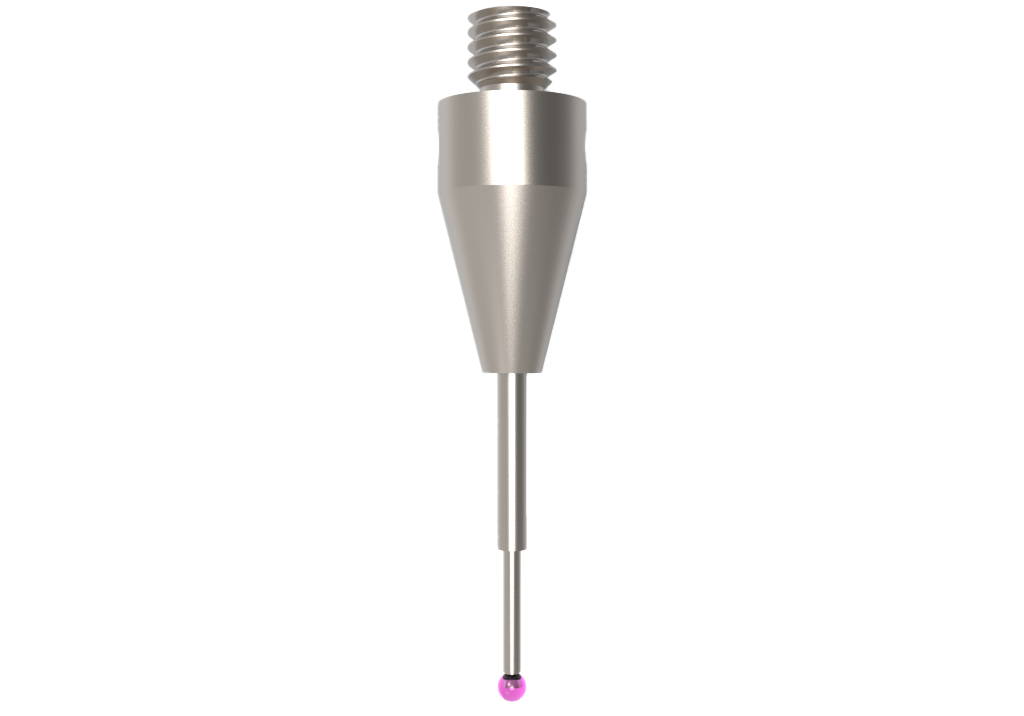

31 TH M3 005 05 024

M3 XXT Stepped-stem Stylus

0.5

24

15

2.3

1

0.3

5

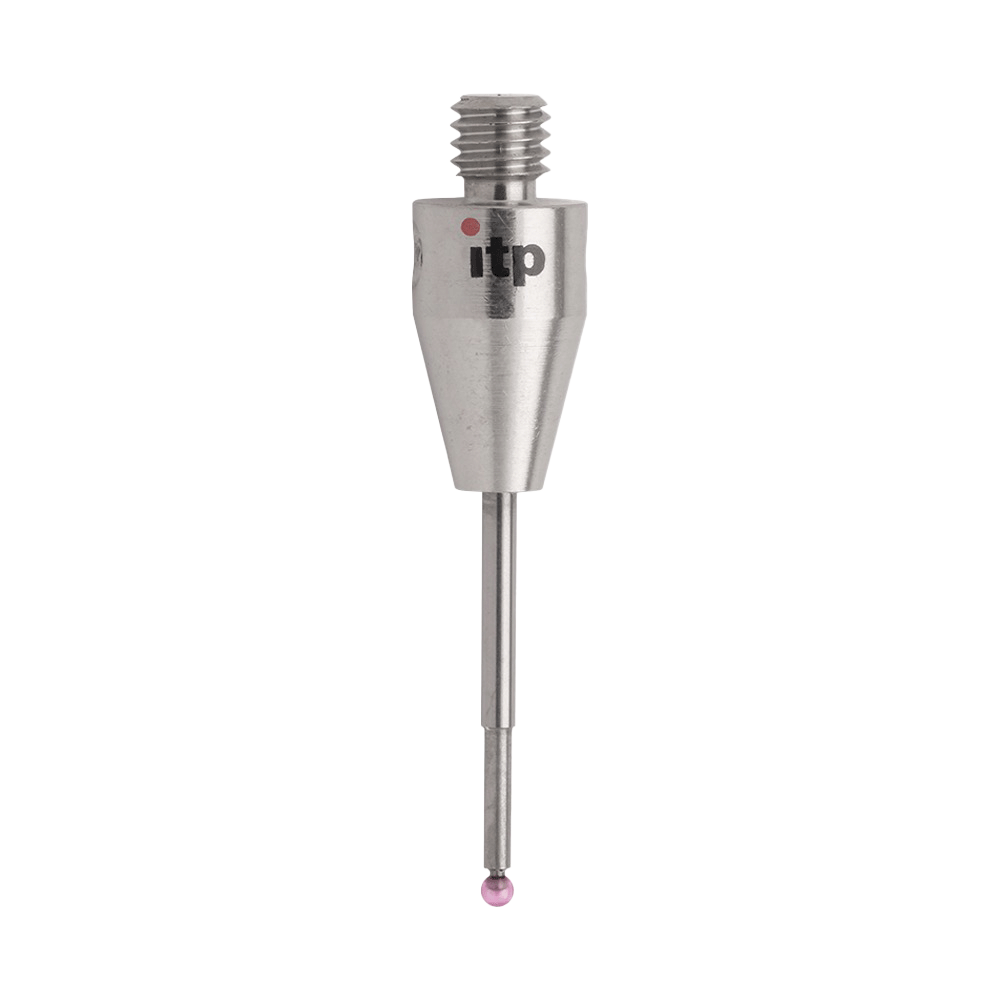

32 TH M3 010 05 020/0,8

M3 XXT Stepped-stem Stylus

1

20

11

5

1

0.8

5

33 TH M3 005 05 013

M3 XXT Stepped-stem Stylus

0.5

13

4

2.3

1

0.3

5

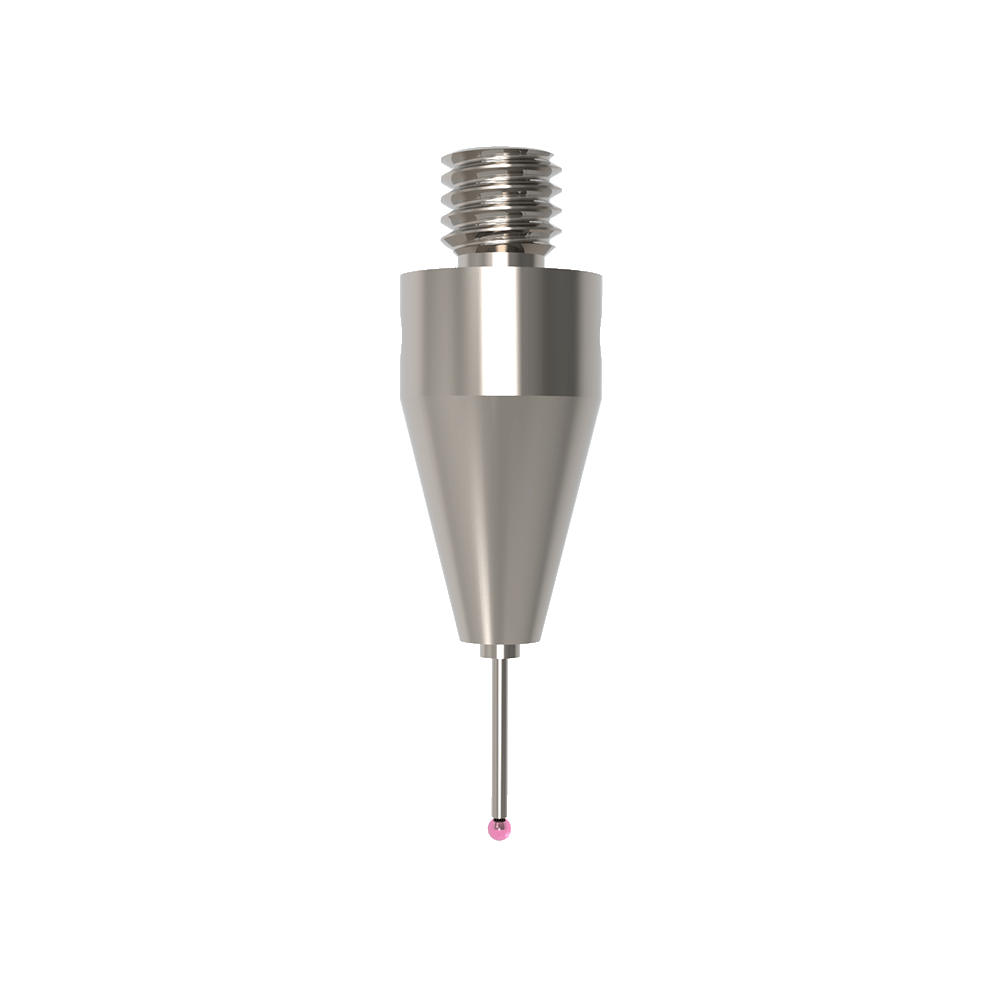

34 TH M3 006 05 014

M3 XXT Stepped-stem Stylus

0.6

14

5

4.6

1

0.4

5

35 TH M3 DC10 05 040

M3 XXT UltraScanning Stepped-stem Stylus

1

40

31

5

1

0.8

5

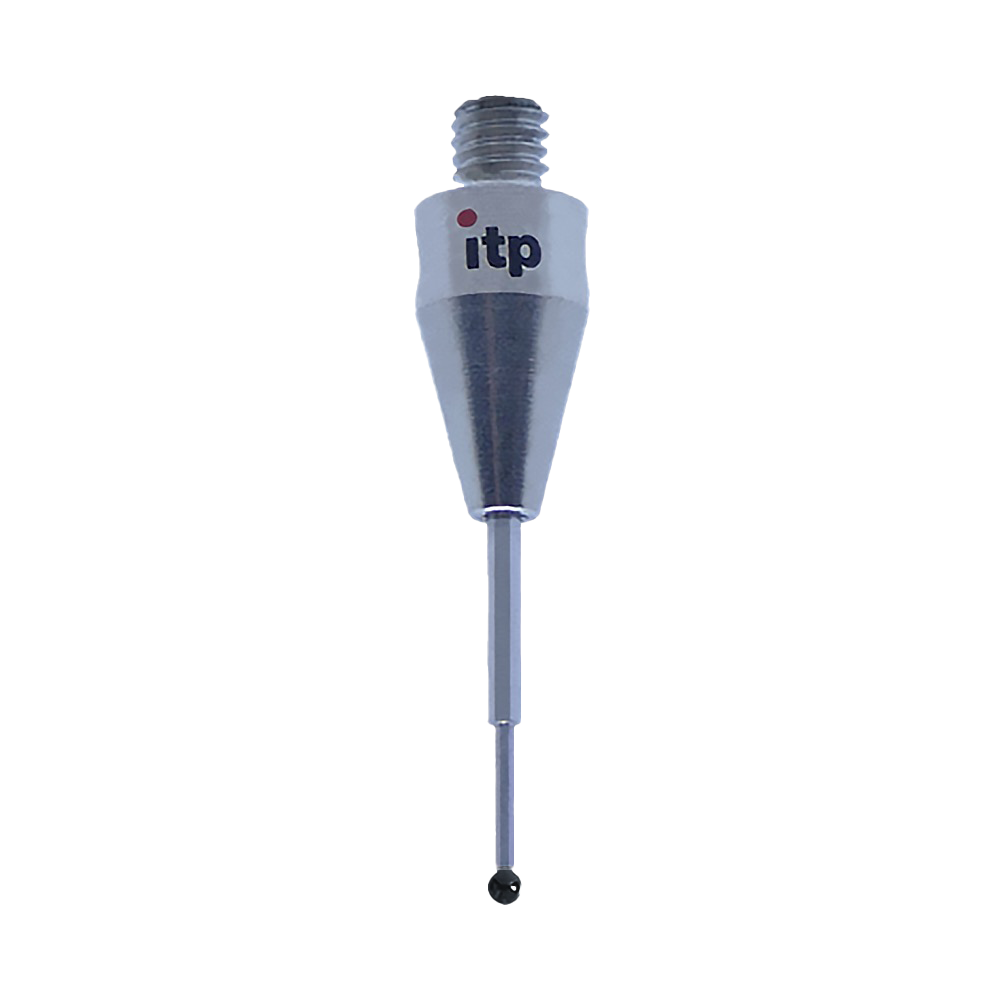

36 TH M3 DC10 05 020

M3 XXT UltraScanning Stepped-stem Stylus

1

20

11

5

1

0.6

5

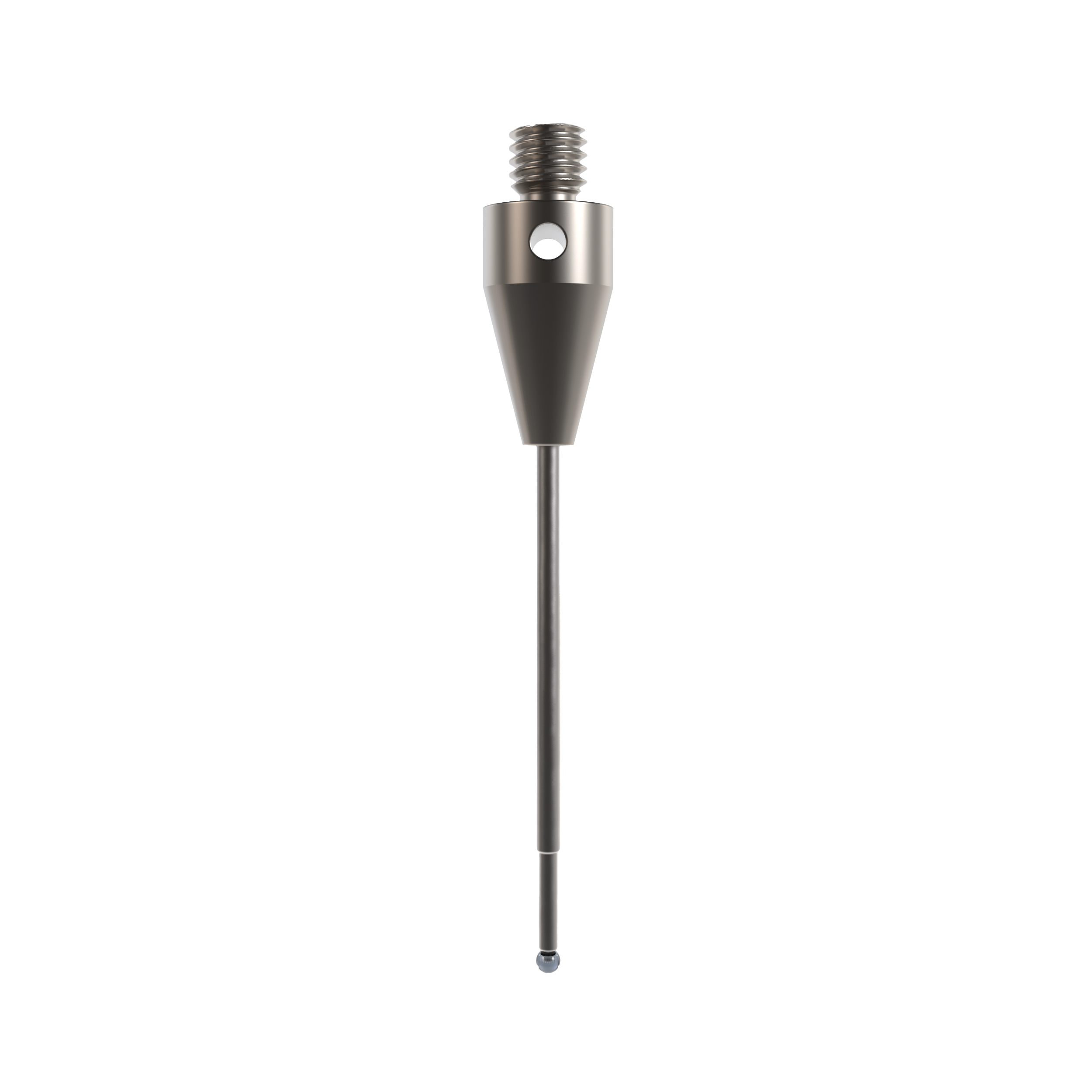

37 TH M3 DC10 05 030

M3 XXT UltraScanning Stepped-stem Stylus

1

30

21

5

1

0.8

5

38 TH M5 S15 11 030/K

M5 Stepped-stem Scanning Stylus

1.5

30

20

8

1.5

1

11

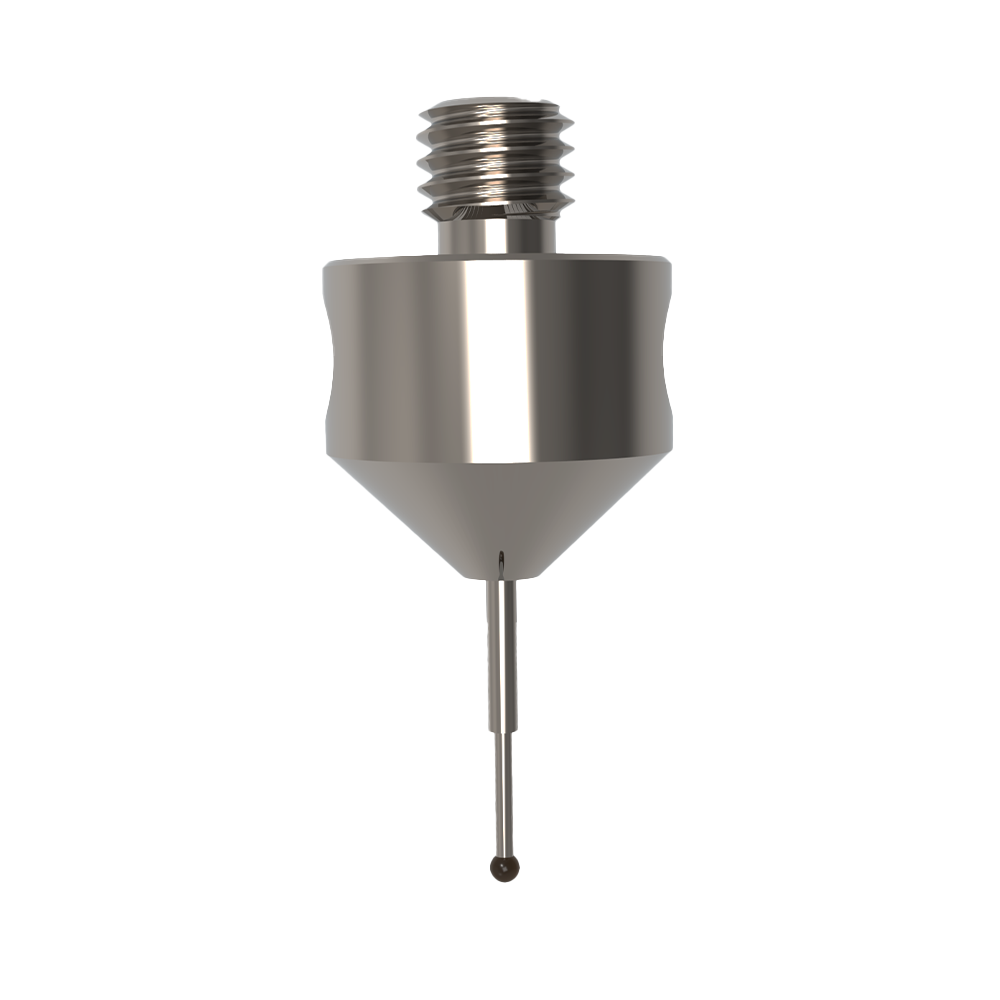

39 TH M5 S10 11 020/K

M5 Stepped-stem Scanning Stylus

1

20

10

5

1

0.8

11

40 NH M5 S10 11 022

M5 Stepped-stem Scanning Stylus

1

22.5

13.5

5

1

0.8

11

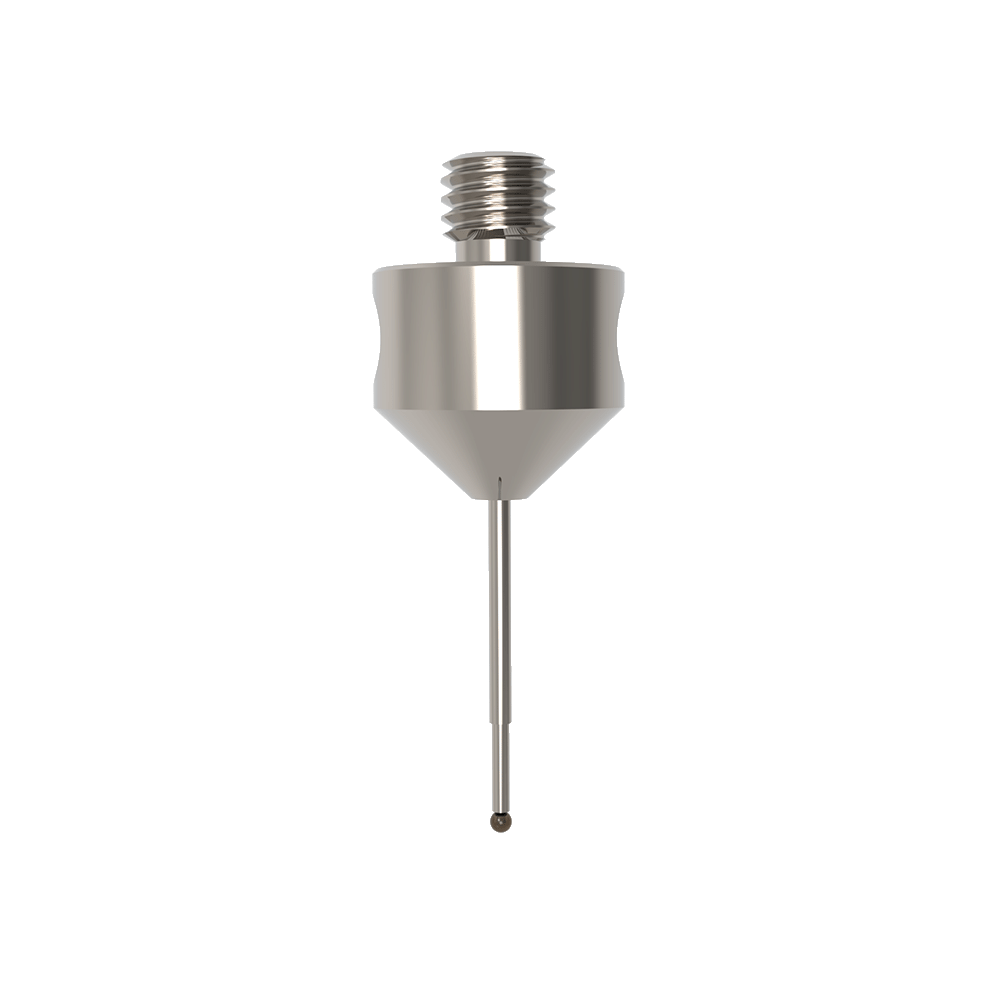

41 TH M5 S10 11 025

M5 Stepped-stem Scanning Stylus

1

25

15

5

1

0.8

11

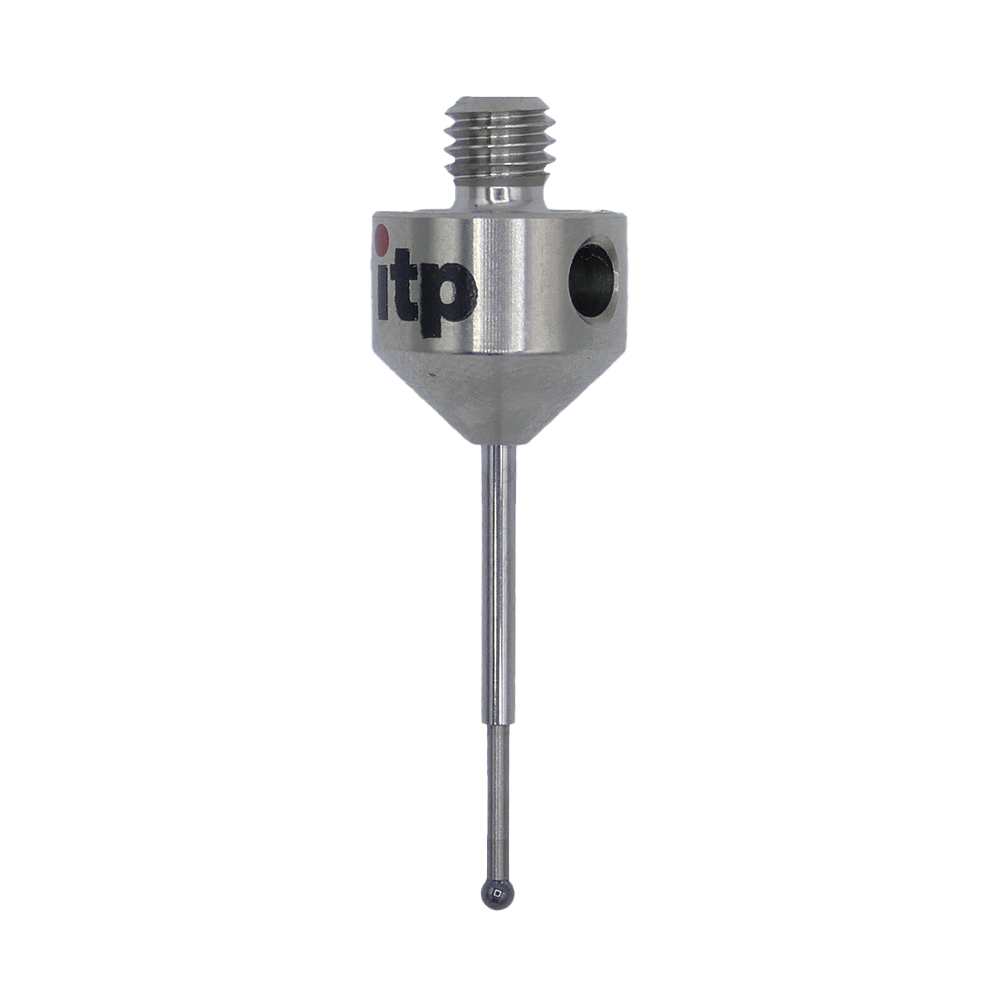

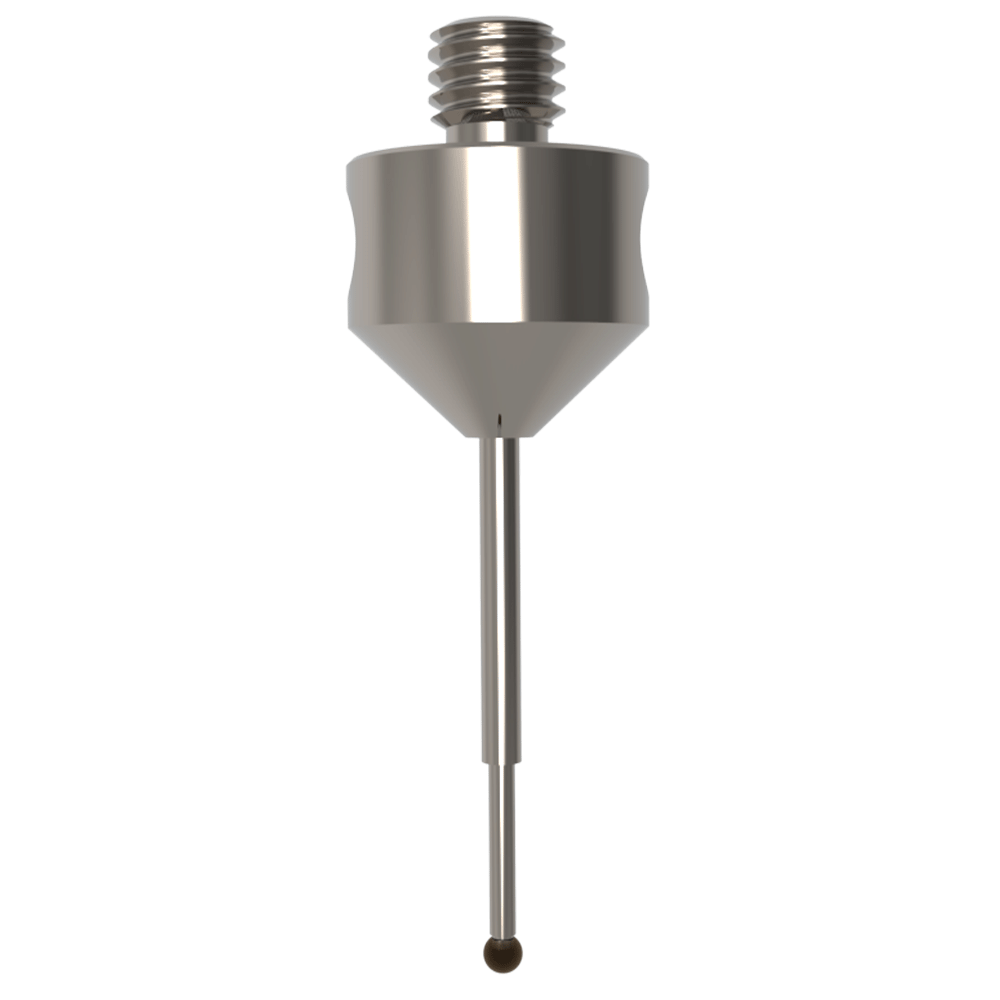

42 TH M5 S15 11 030

M5 Stepped-stem Scanning Stylus

1.5

30

20

8

1.5

1

11

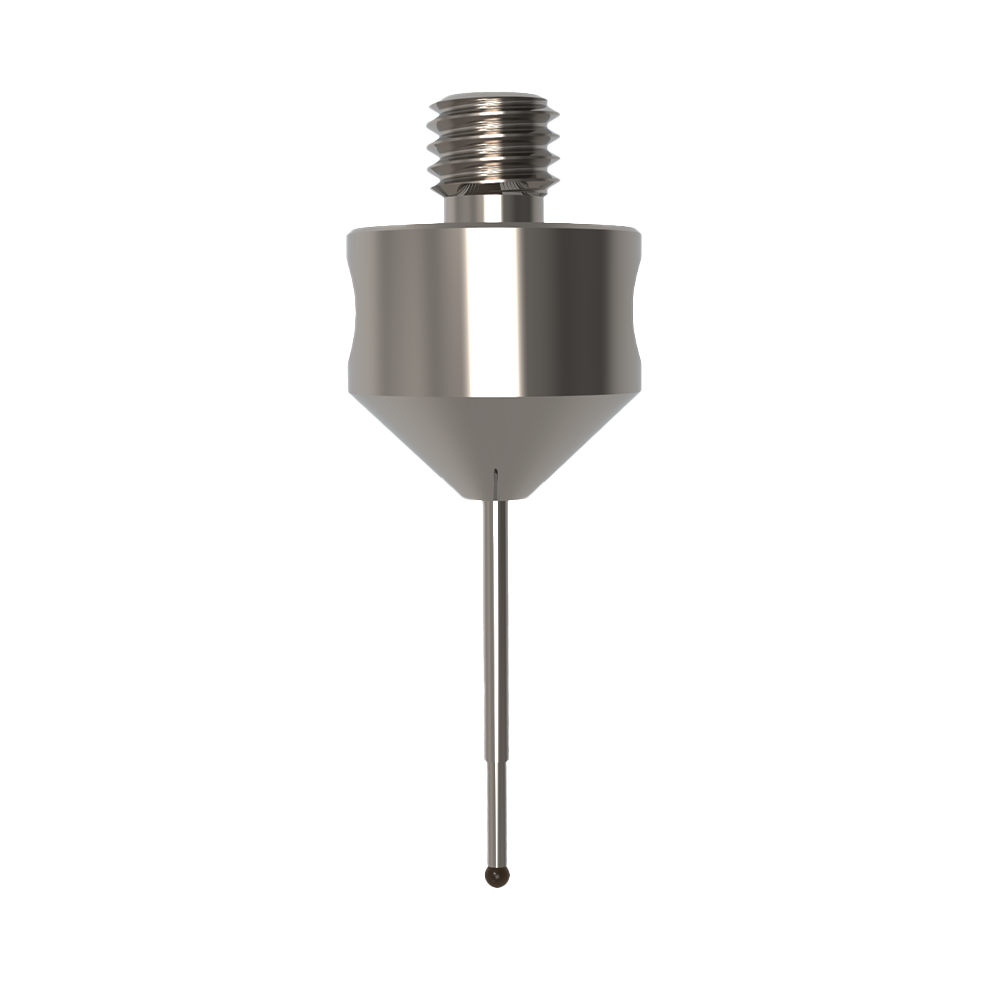

43 TH M5 S10 11 025/K

M5 Stepped-stem Scanning Stylus

1

25

15

5

1

0.8

11

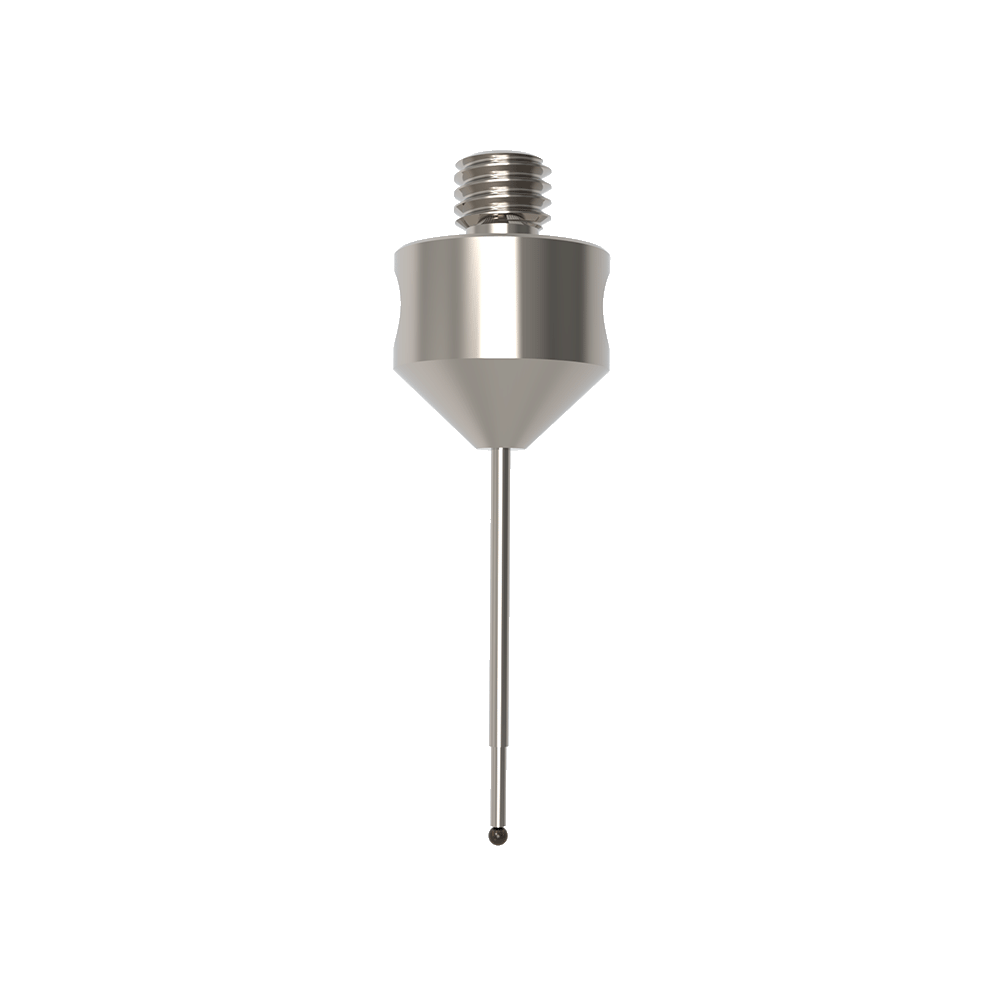

44 TH M5 S10 11 030

M5 Stepped-stem Scanning Stylus

1

30

20

5

1

0.8

11

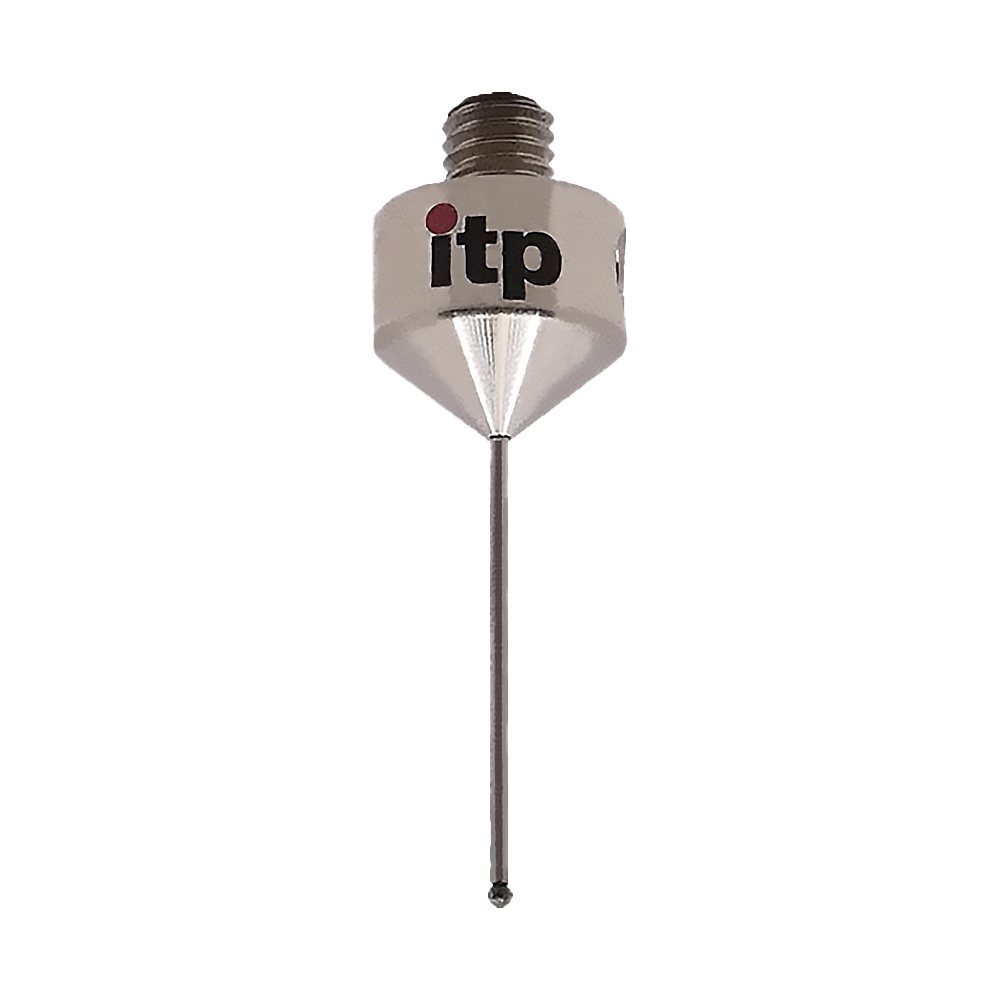

45 TH M5 S10 11 030/K

M5 Stepped-stem Scanning Stylus

1

30

20

5

1

0.8

11

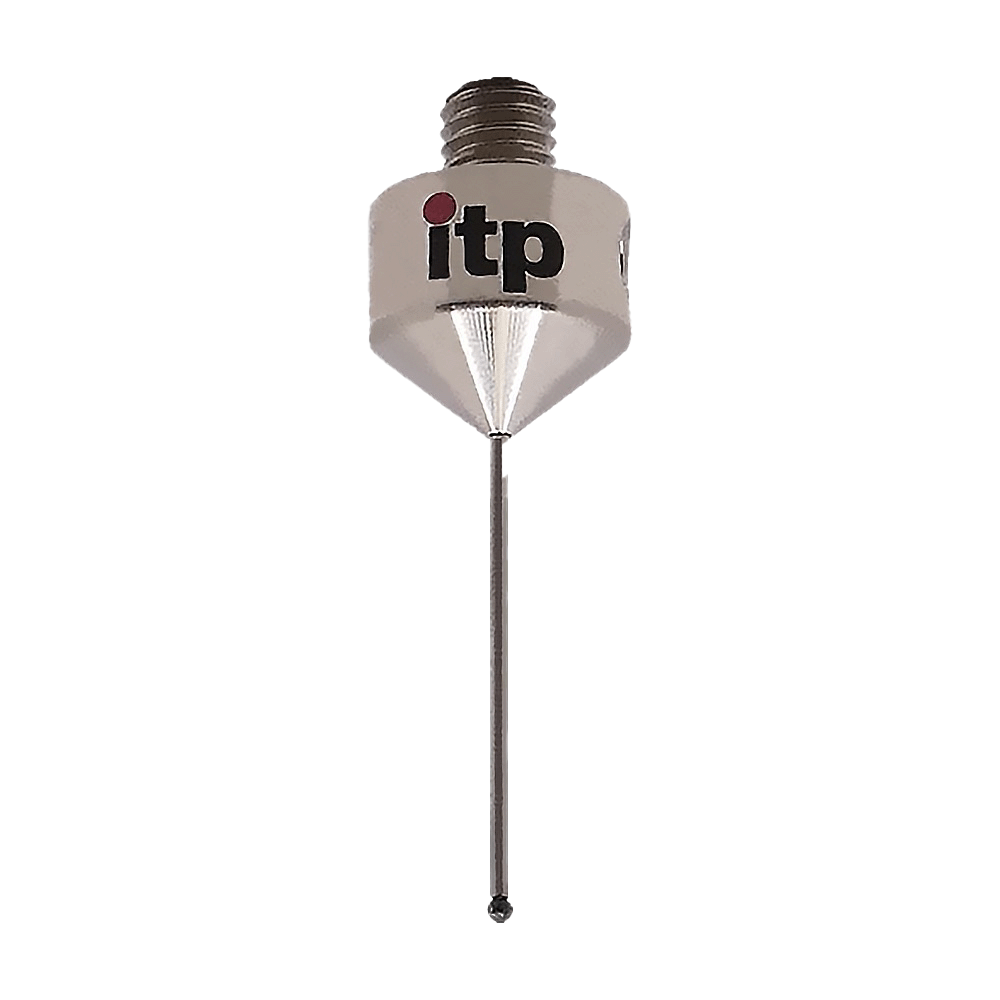

46 TH M5 S10 11 020

M5 Stepped-stem Scanning Stylus

1

20

10

5

1

0.8

11

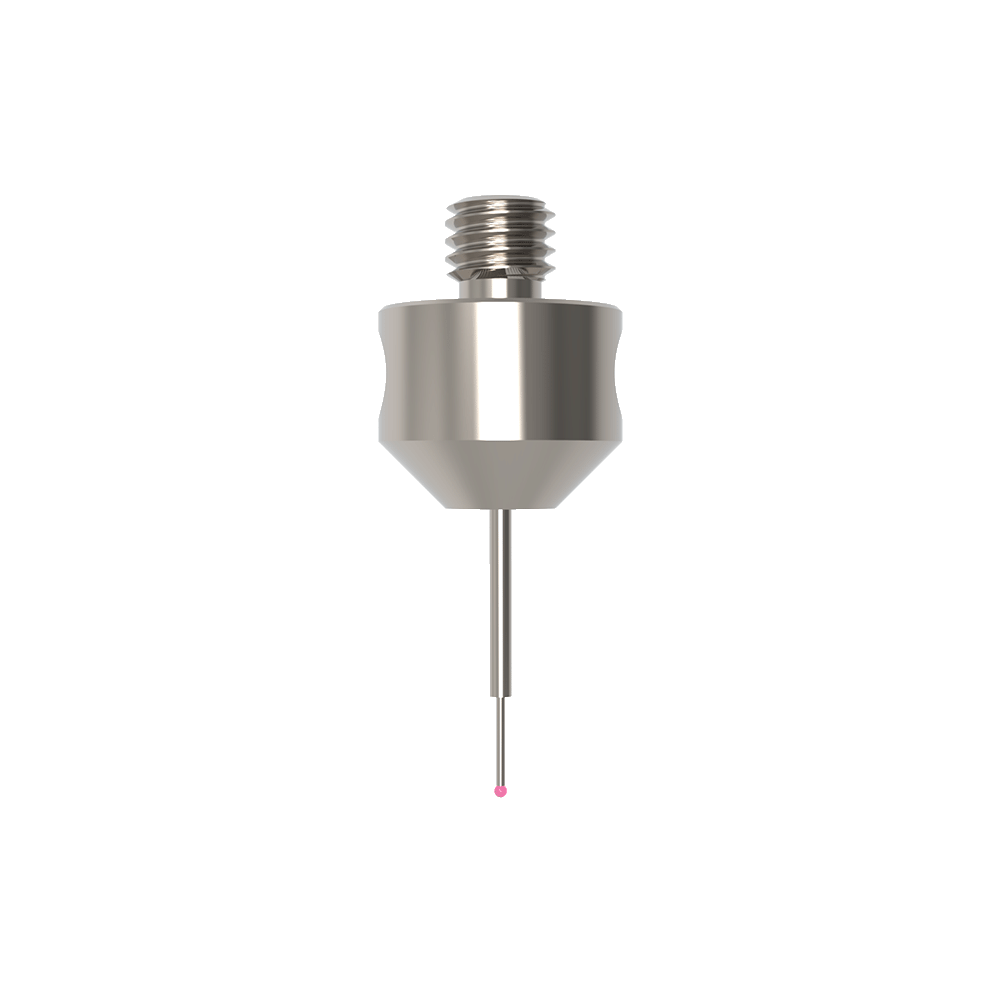

47 NH M5 006 11 022

M5 Stepped-stem Stylus

0.6

22.1

13.1

4.6

1

0.4

11

48 NH M5 010 11 022

M5 Stepped-stem Stylus

1

22.5

13.5

5

1

0.8

11

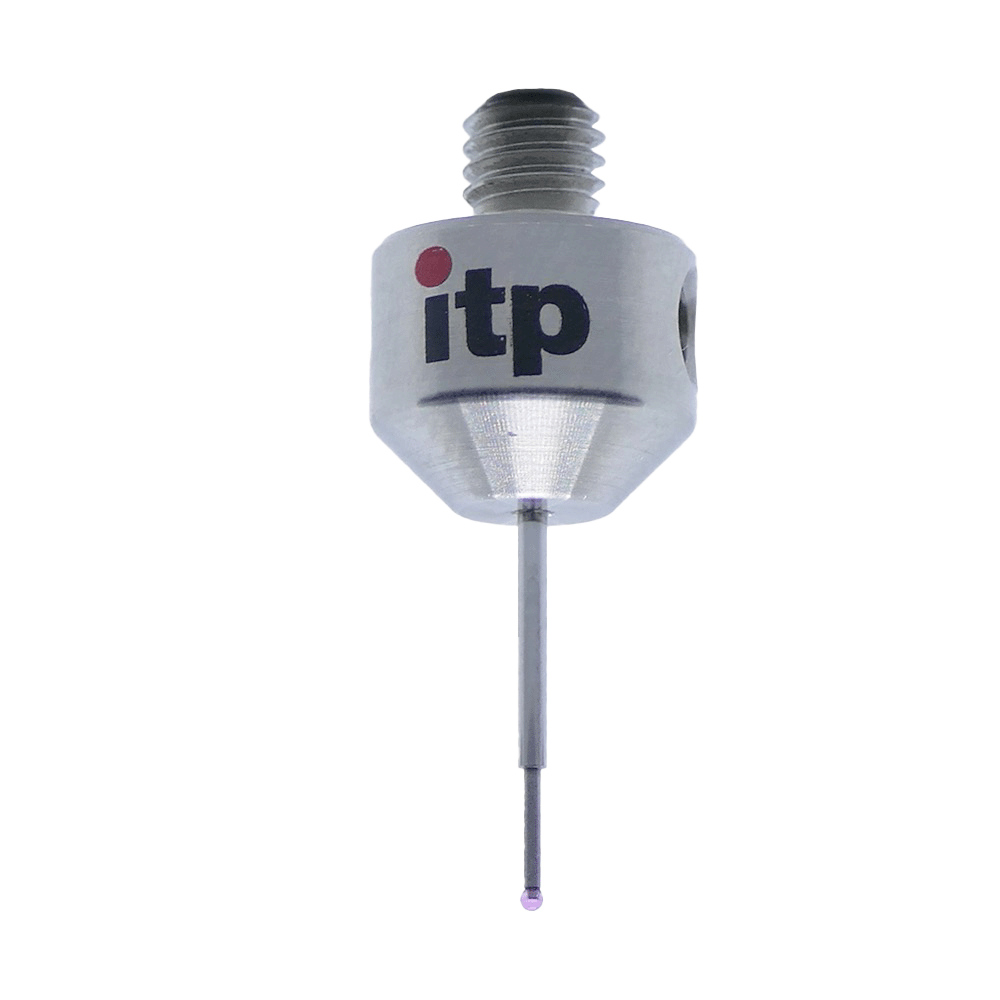

49 NH M5 008 11 022

M5 Stepped-stem Stylus

0.8

22.3

13.3

4.8

1

0.6

11

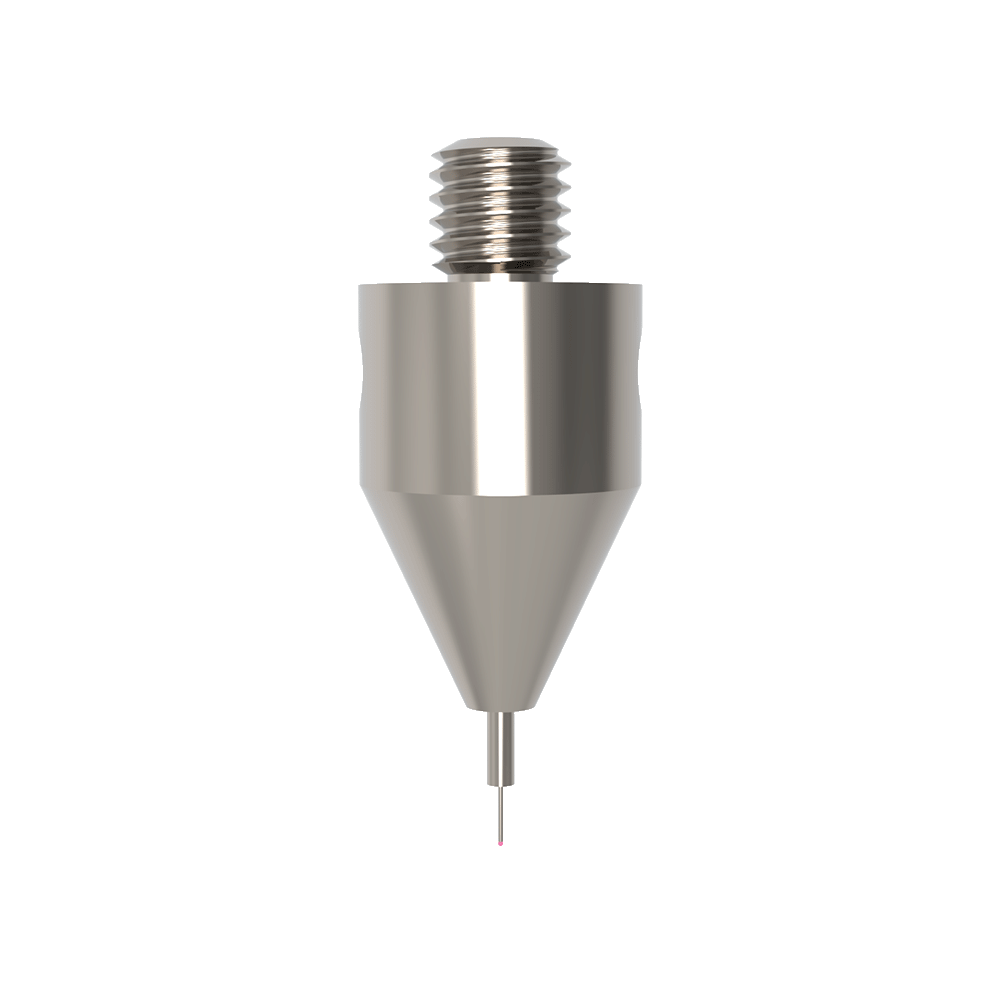

50 TH M5 002 10 020

M5 Stepped-stem Stylus

0.2

20.15

5.15

2.3

1

0.18

10

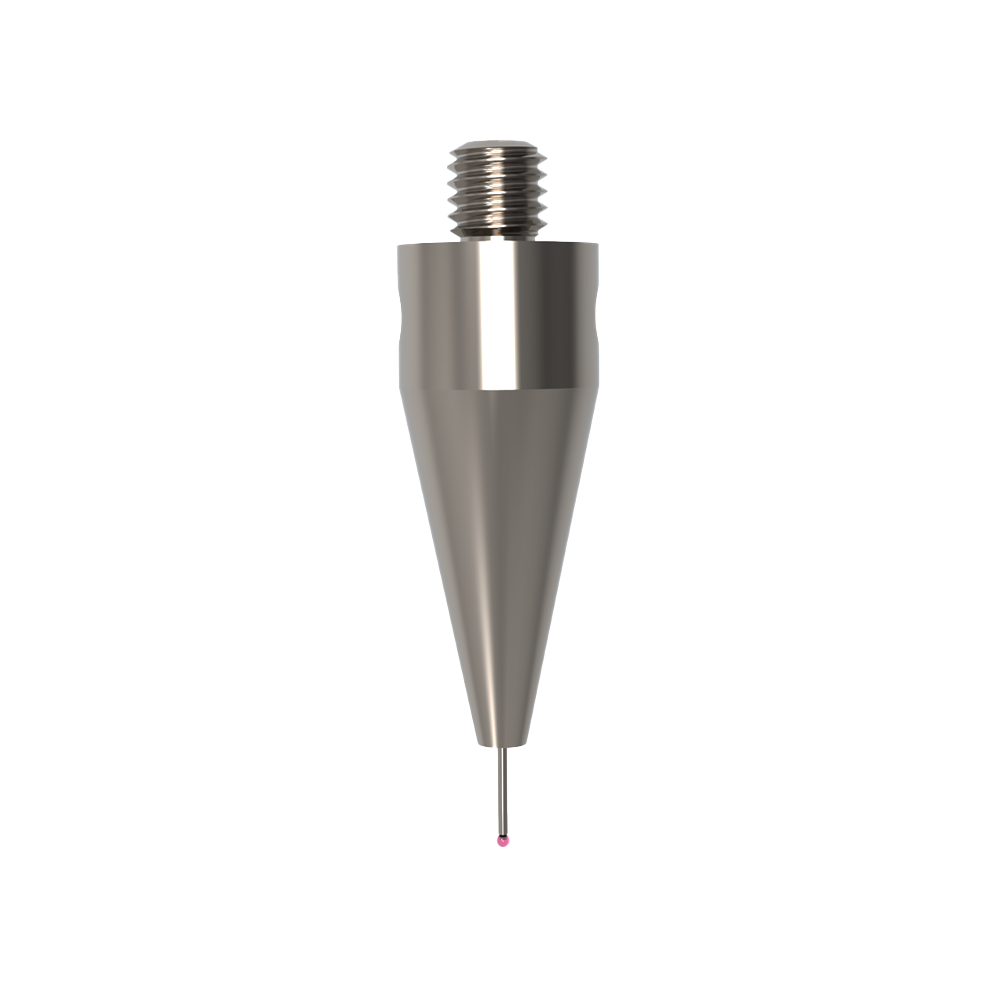

51 TH M5 003 10 030

M5 Stepped-stem Stylus

0.3

30.15

5.15

3.15

0.7

0.2

10

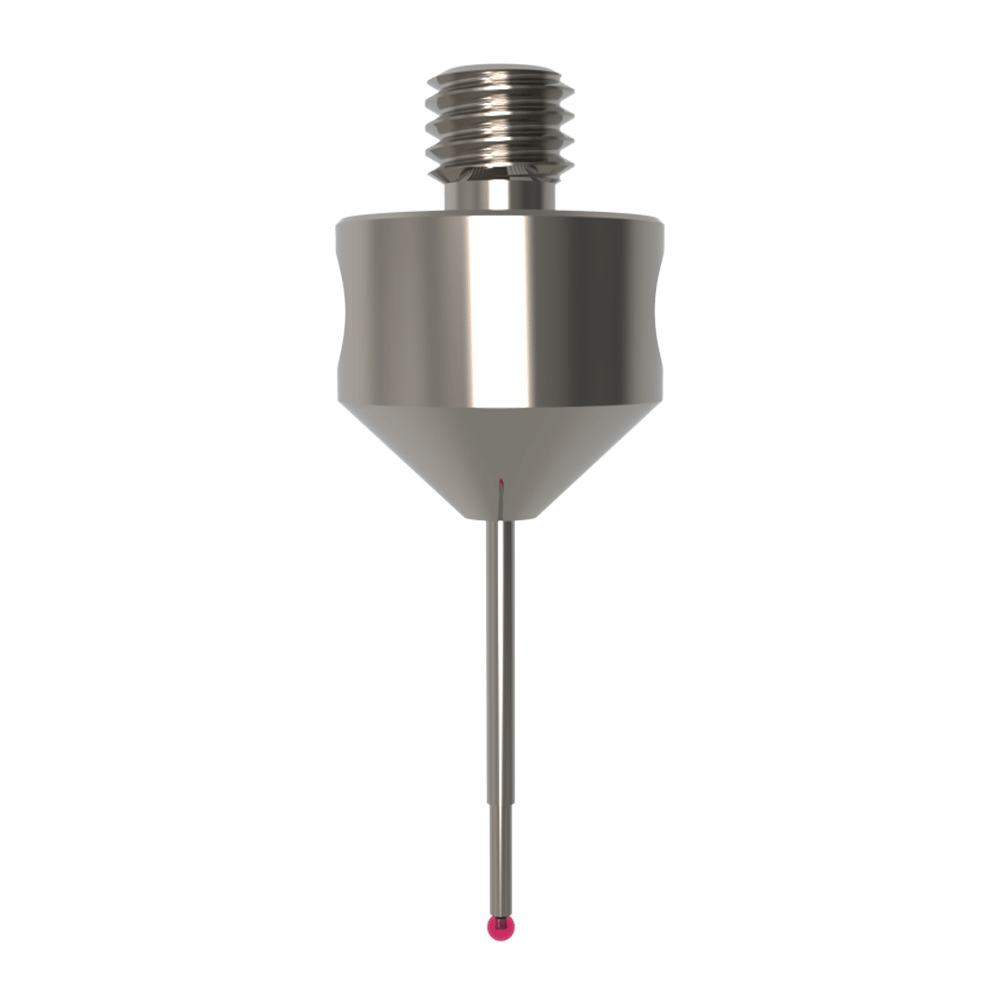

52 TH M5 010 11 025

M5 Stepped-stem Stylus

1

25

15

5

1

0.8

11

53 NH M5 003 11 021

M5 Stepped-stem Stylus

0.3

21.8

12.8

2.3

1

0.2

11

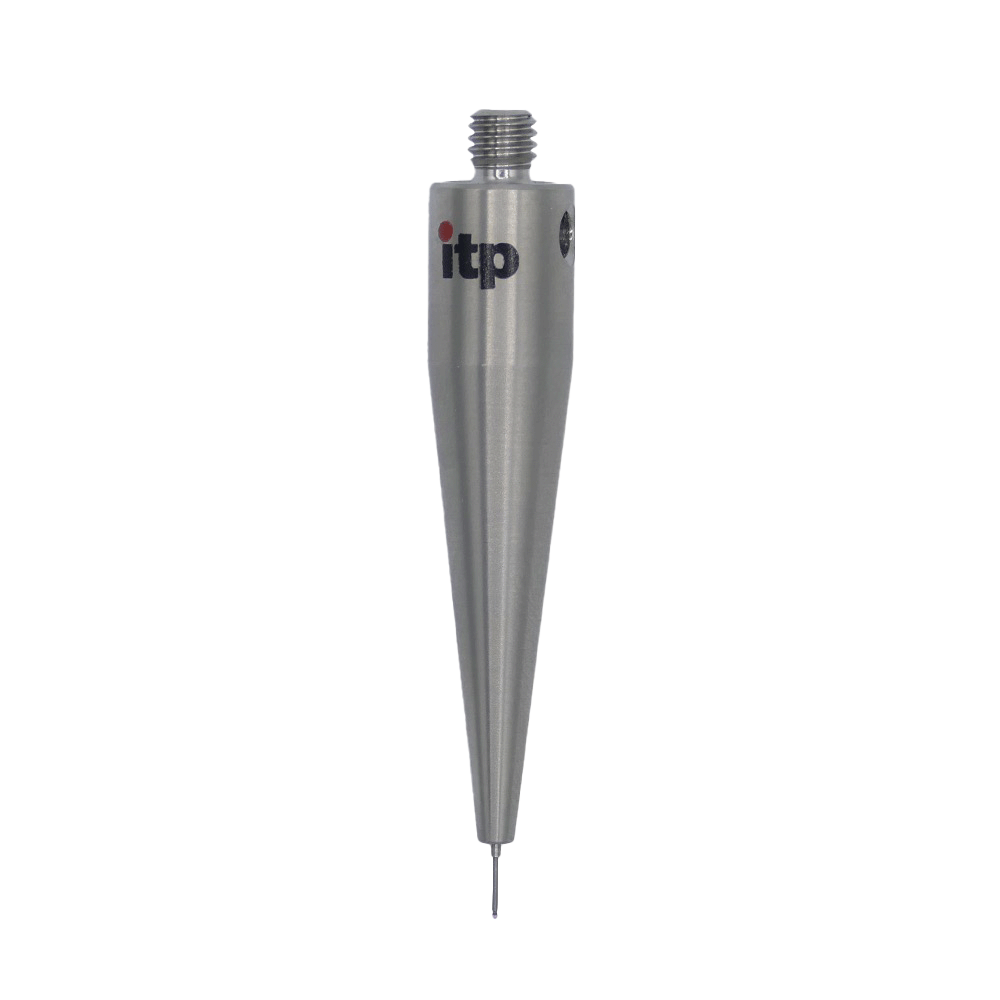

54 TH M5 005 10 050

M5 Stepped-stem Stylus

0.5

50.25

5.25

4.25

0.7

0.4

10

55 TH M5 005 10 020

M5 Stepped-stem Stylus

0.5

20.25

5.25

4.25

0.7

0.4

10

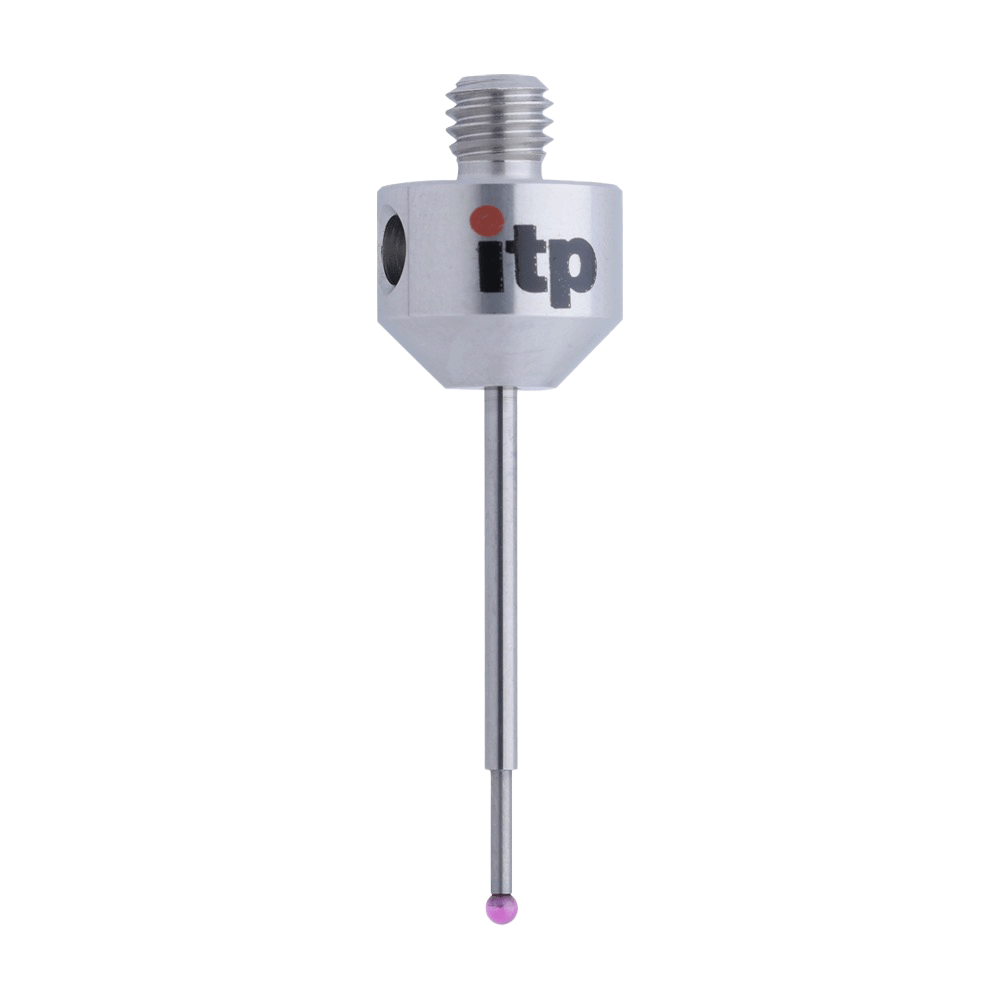

56 NH M5 K15 11 033

M5 Stepped-stem Stylus

1.5

33

24

7

1.5

1

11

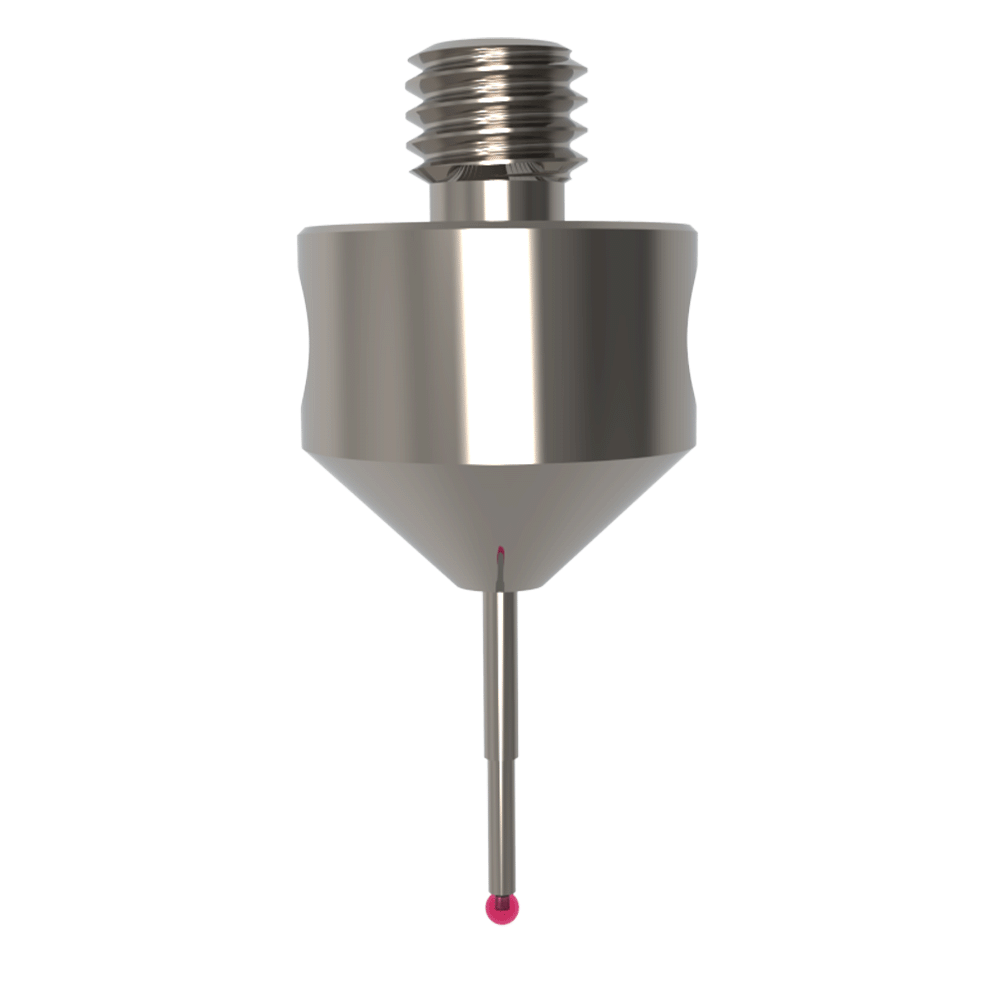

57 TH M5 010 11 020

M5 Stepped-stem Stylus

1

20

10

5

1

0.8

11

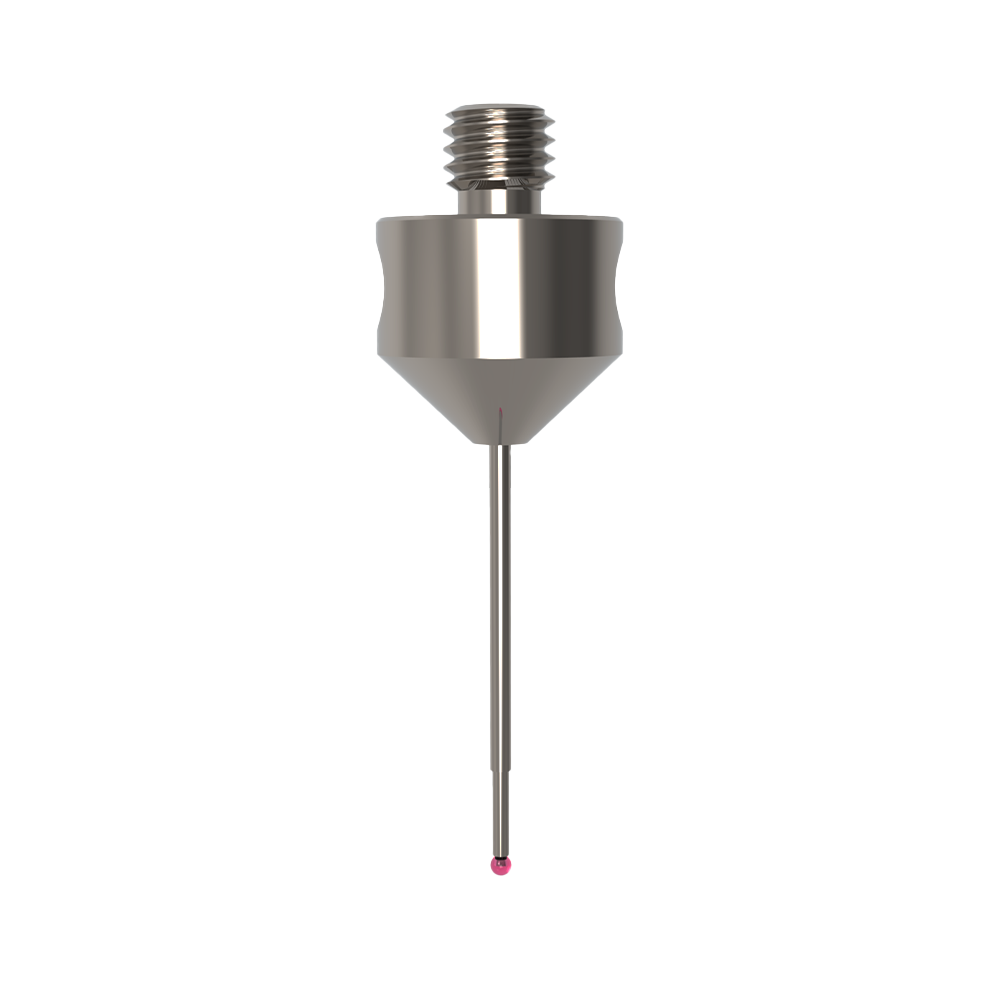

58 TH M5 010 11 030

M5 Stepped-stem Stylus

1

30

20

5

1

0.8

11

59 TH M5 0025 10 020

M5 Stepped-stem Stylus

0.25

20.15

5.15

2.3

1

0.18

10

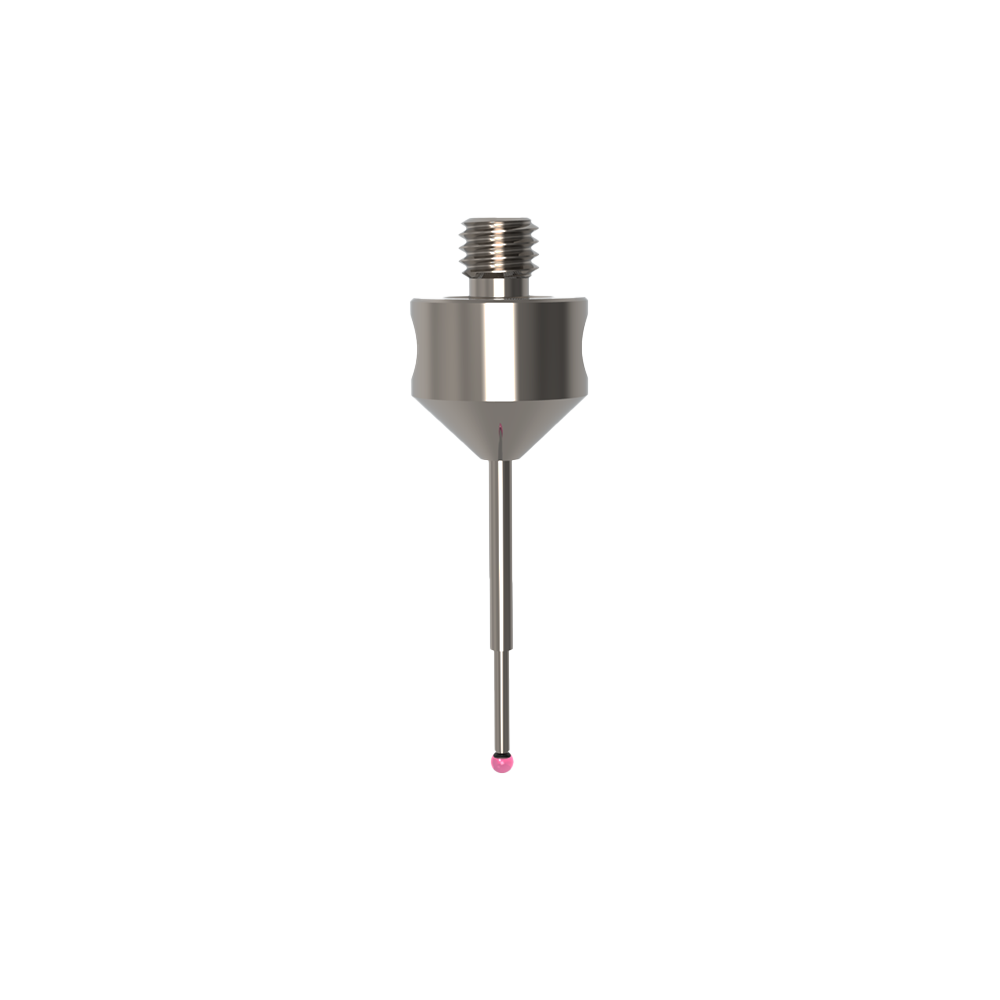

60 TH M5 015 11 030

M5 Stepped-stem Stylus

1.5

30

20

8

1.5

1

11

61 TH M5 003 10 020

M5 Stepped-stem Stylus

0.3

20.15

5.15

3.15

0.7

0.2

10

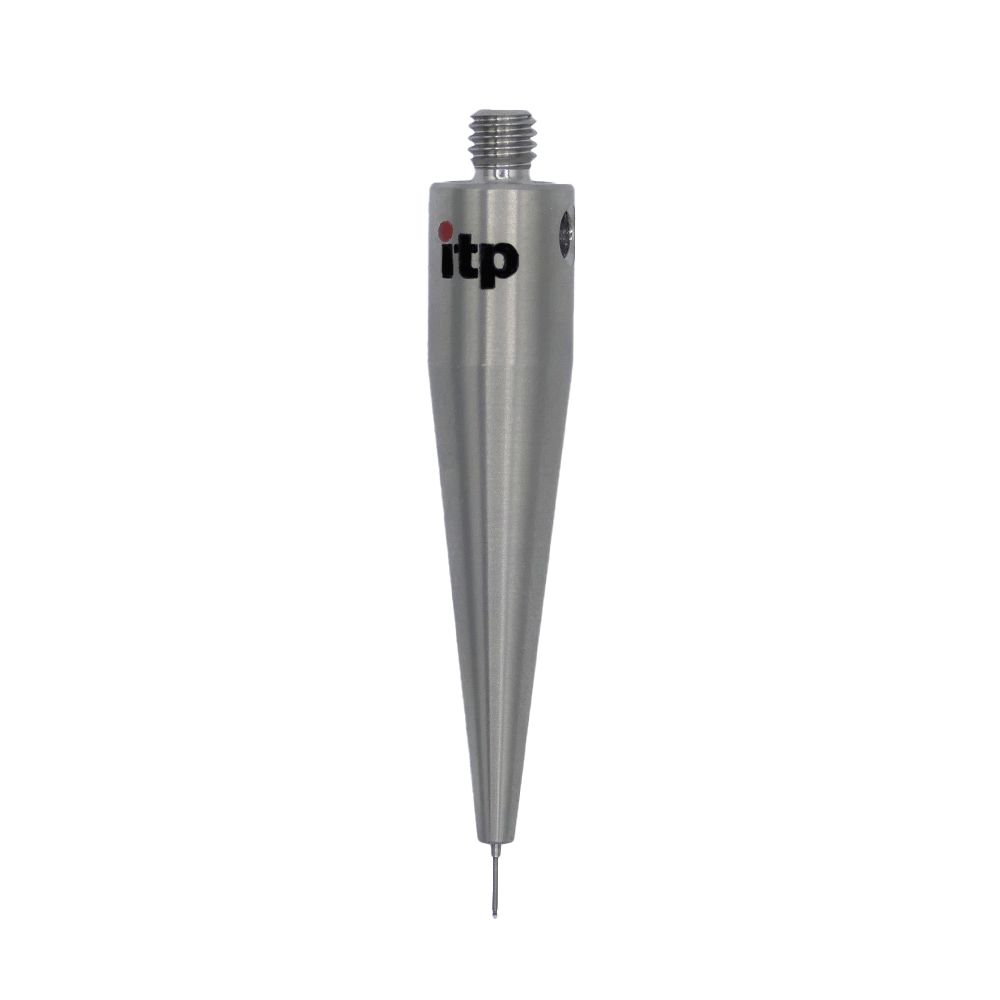

62 TH M5 003 10 050

M5 Stepped-stem Stylus

0.3

50.15

5.15

3.15

0.7

0.2

10

63 NH M5 005 11 022

M5 Stepped-stem Stylus

0.5

22

13

2.5

1

0.3

11

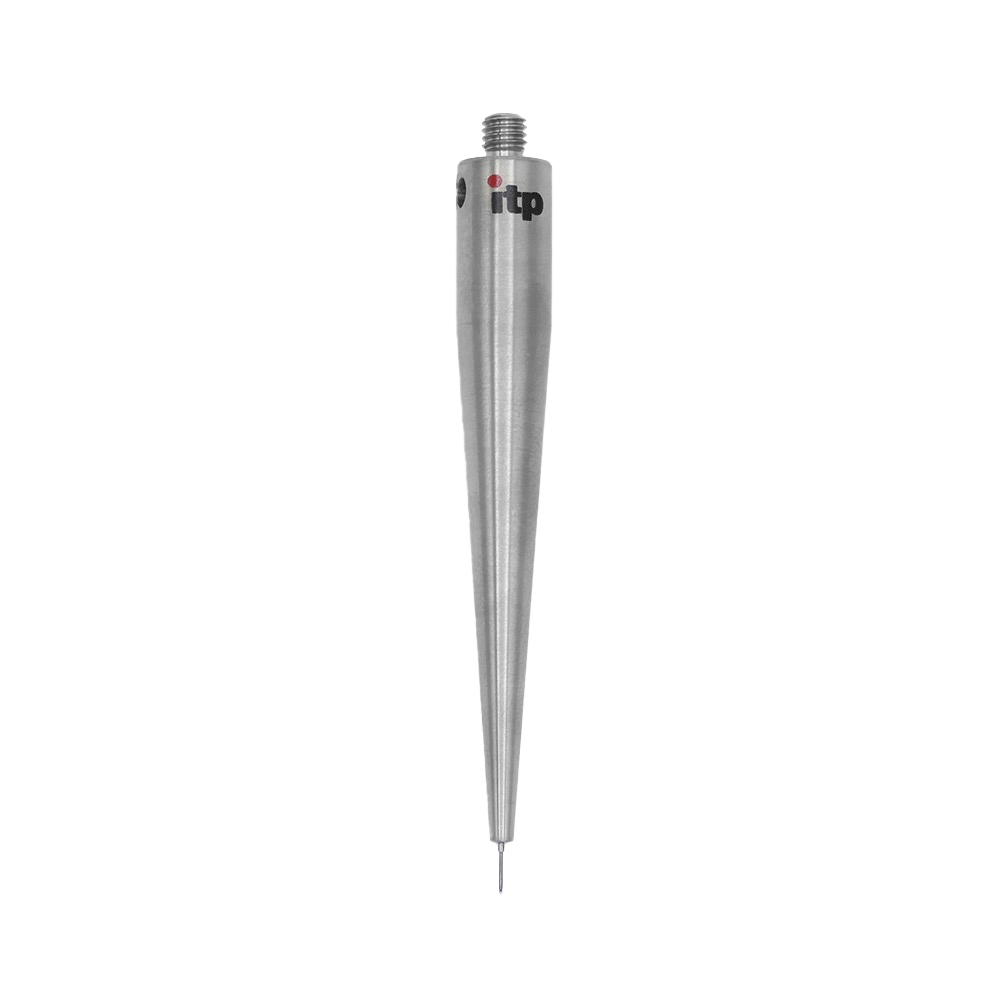

64 TH M5 003 10 075

M5 Stepped-stem Stylus

0.3

75.15

5.15

3.15

0.7

0.2

10

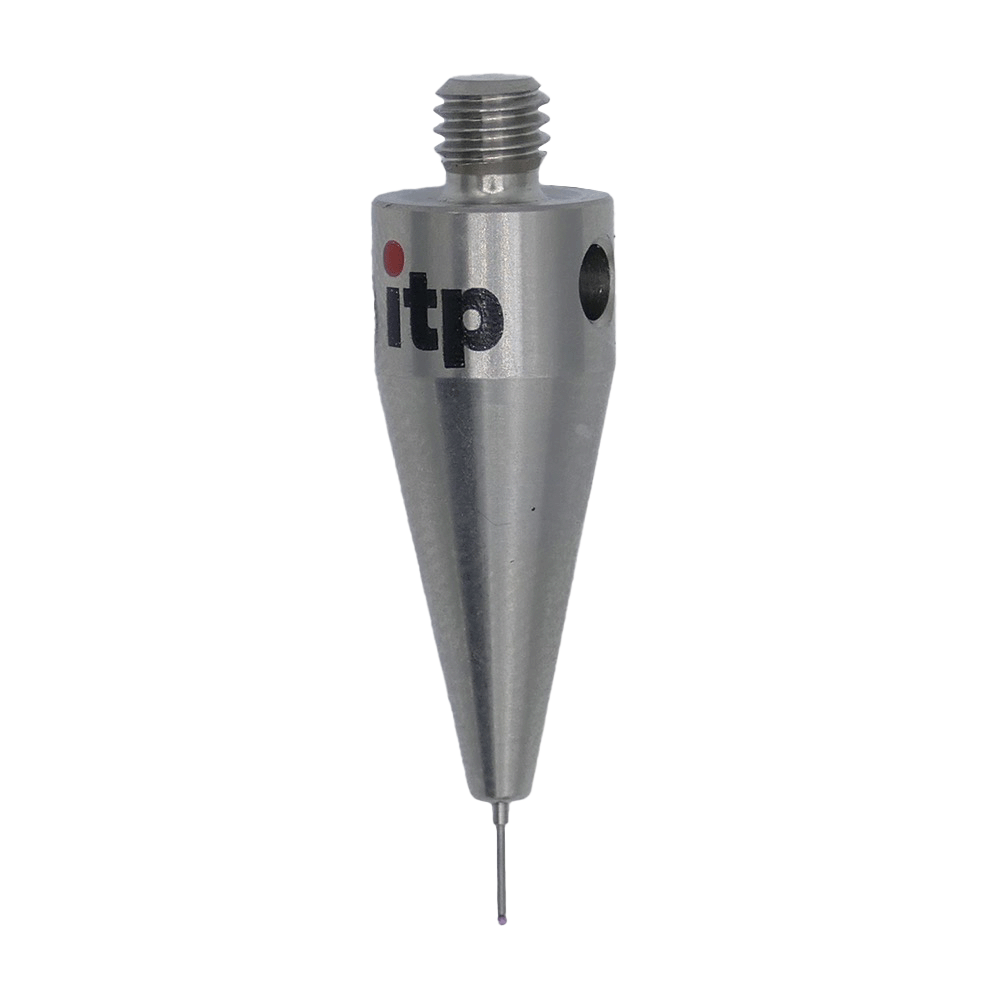

65 TH M5 005 10 030

M5 Stepped-stem Stylus

0.5

30.25

5.25

4.25

0.7

0.4

10

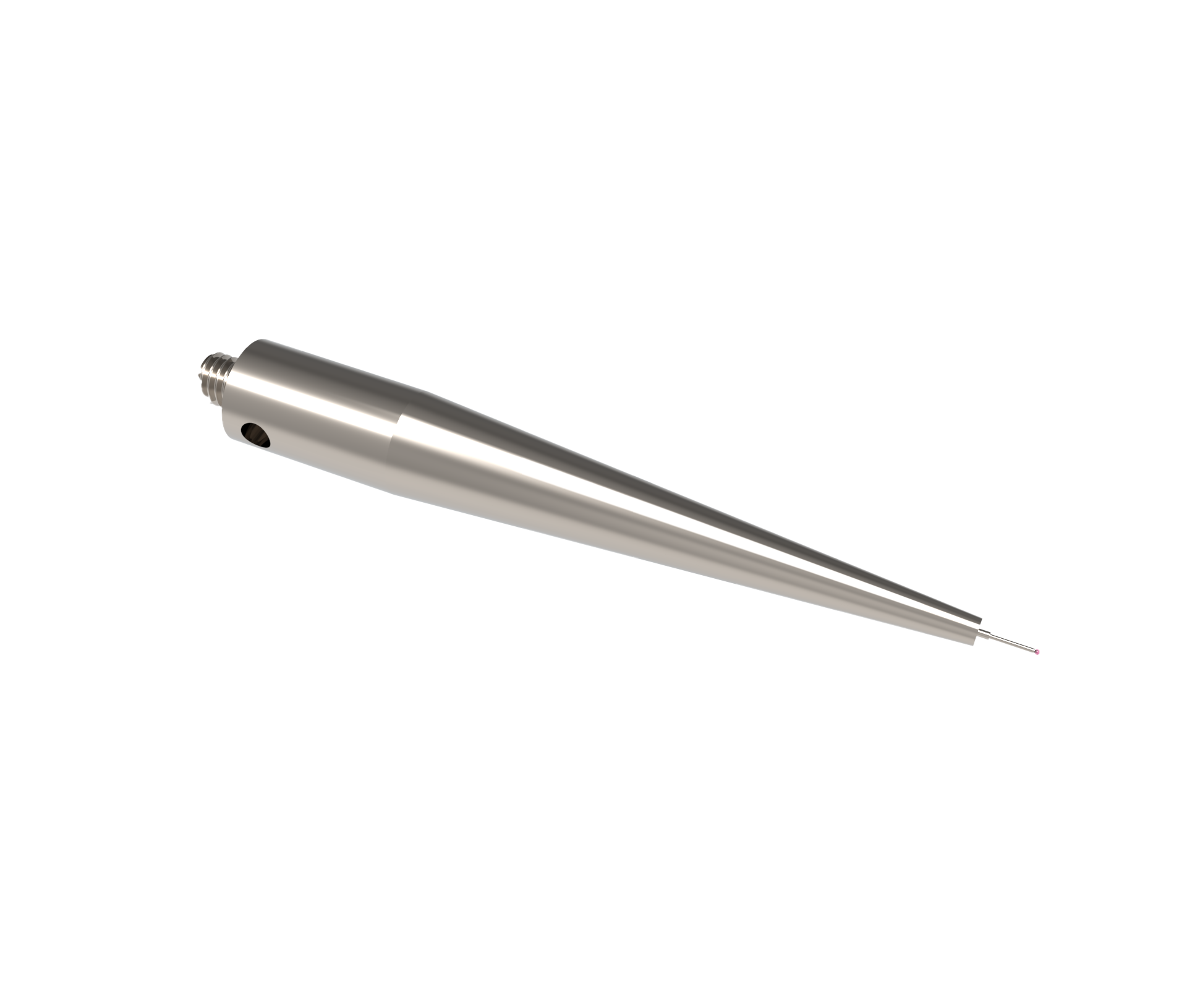

66 TH M5 005 10 075

M5 Stepped-stem Stylus

0.5

75.25

5.25

4.25

0.7

0.4

10

67 TH M5 DC15 11 030

M5 UltraScanning Stepped-stem Stylus

1.5

30

20

8

1.5

1

11

68 TH M5 DC10 11 030

M5 UltraScanning Stepped-stem Stylus

1

30

20

5

1

0.8

11
