M3 XXT UltraScanning Stepped-stem Stylus
Diamond Coated Ball , Carbide Stem , Titanium Base
1.0 mm Ball; 31.0 mm Measuring Length; 40.0 mm Total Length
M3 XXT UltraScanning Stepped-stem Stylus
Diamond Coated Ball , Carbide Stem , Titanium Base
Order-No.: | TH M3 DC10 05 040 |
---|---|
Price: | $660.00 |

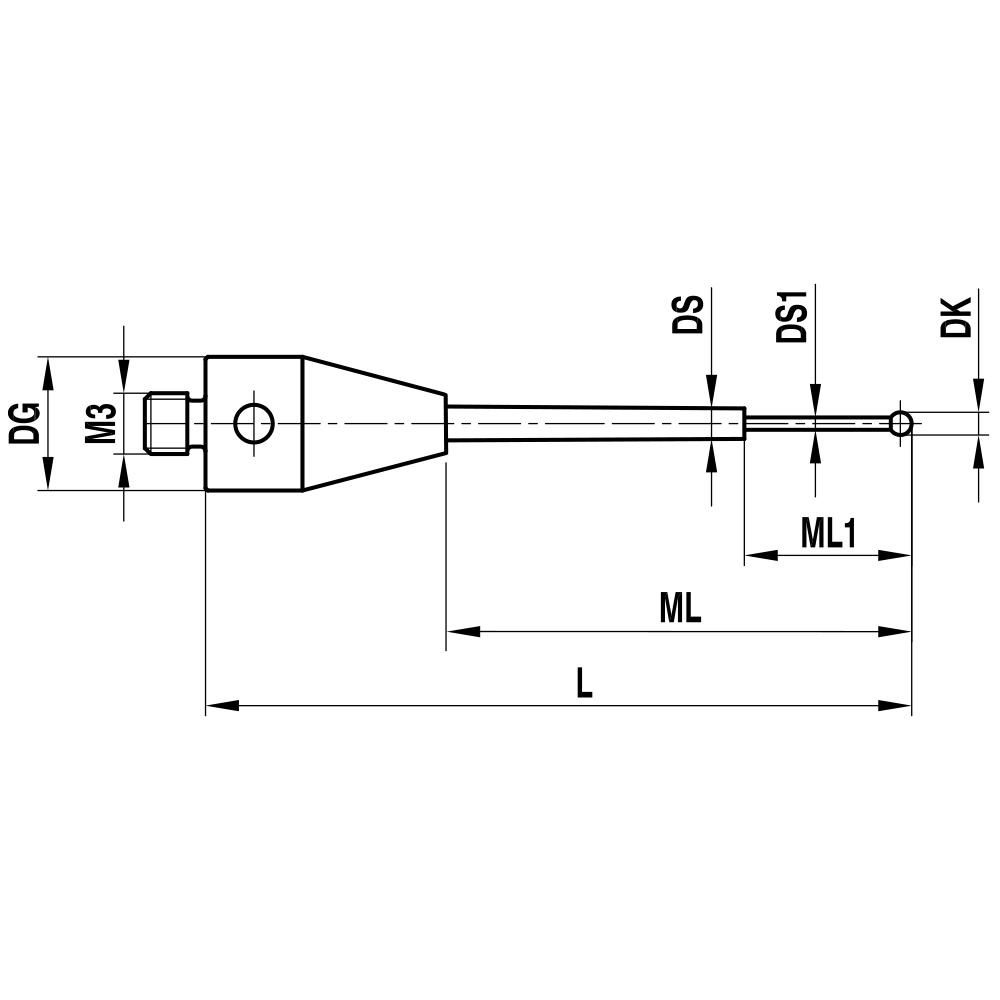

Thread Size: | M3 Xxt |
DK: | 1.0 mm |
L: | 40.0 mm |
DG: | 5.0 mm |
ML: | 31.0 mm |
Ml (1): | 5.0 mm |
DS: | 1.0 mm |
Ds (1): | 0.8 mm |
Thread size: | M3 Xxt |
Probe Ball Material: | Diamond Coated |
Stem Material: | Carbide |
Base Material: | Titanium |
Weight: | 0.9 g |
Design Your Own customized specials manufactured to your specifications. | |
1.0 mm Ball; 31.0 mm Measuring Length; 40.0 mm Total Length |
