M3 XXT UltraScanning Stepped-stem Stylus
Diamond Coated Ball , Carbide Stem , Titanium Base
1.0 mm Ball; 21.0 mm Measuring Length; 30.0 mm Total Length
M3 XXT UltraScanning Stepped-stem Stylus
Diamond Coated Ball , Carbide Stem , Titanium Base
Order-No.: | TH M3 DC10 05 030 |
---|---|
Price: | $660.00 |

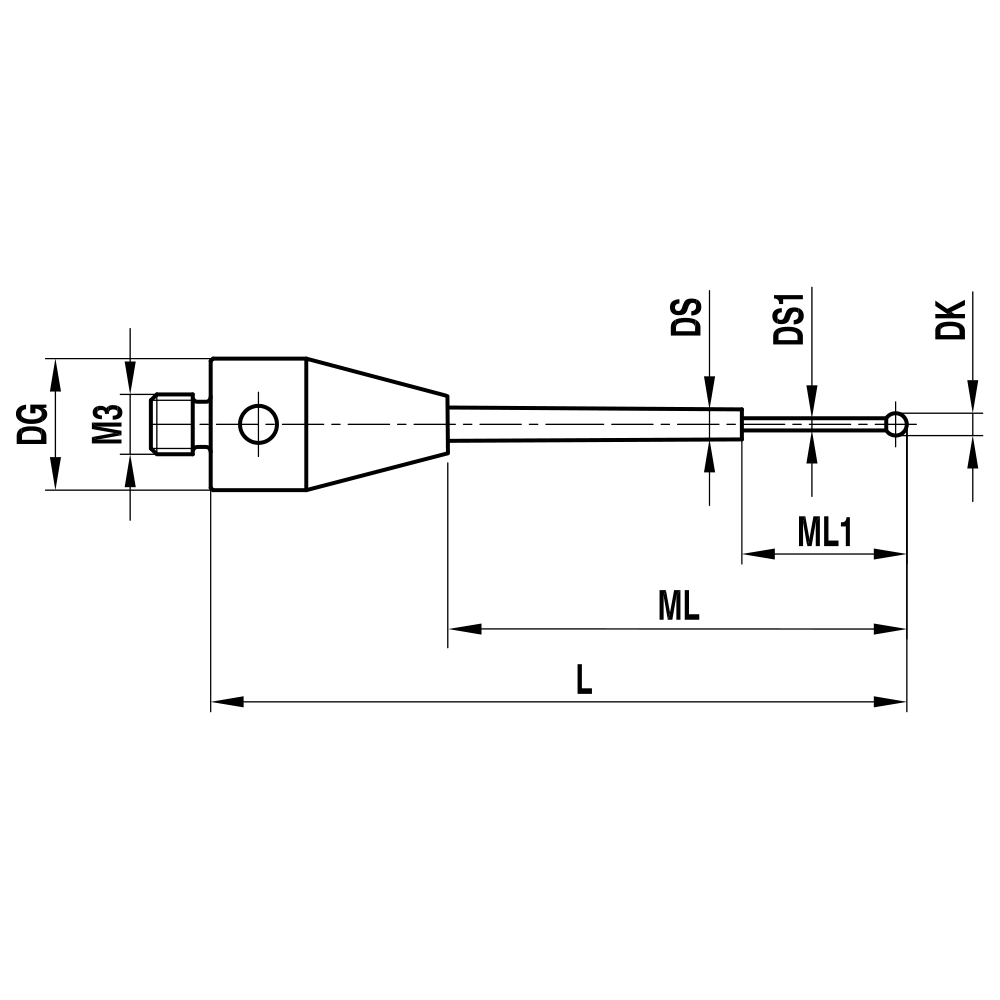

Thread Size: | M3 Xxt |
DK: | 1.0 mm |
L: | 30.0 mm |
DG: | 5.0 mm |
ML: | 21.0 mm |
Ml (1): | 5.0 mm |
DS: | 1.0 mm |
Ds (1): | 0.8 mm |
Thread size: | M3 Xxt |
Probe Ball Material: | Diamond Coated |
Stem Material: | Carbide |
Base Material: | Titanium |
Weight: | 0.8 g |
Diamond coated sphere is actively brazed to the stem. | |
1.0 mm Ball; 21.0 mm Measuring Length; 30.0 mm Total Length |
