M5 Stepped-stem Scanning Stylus
Silicon Nitride Ball , Carbide Stem , Titanium Base
1.50 mm Ball; 2 30.0 mm Total Length
M5 Stepped-stem Scanning Stylus
Silicon Nitride Ball , Carbide Stem , Titanium Base
| Order-No.: | TH M5 S15 11 030/K |
|---|---|
| Price: | $59.00 |

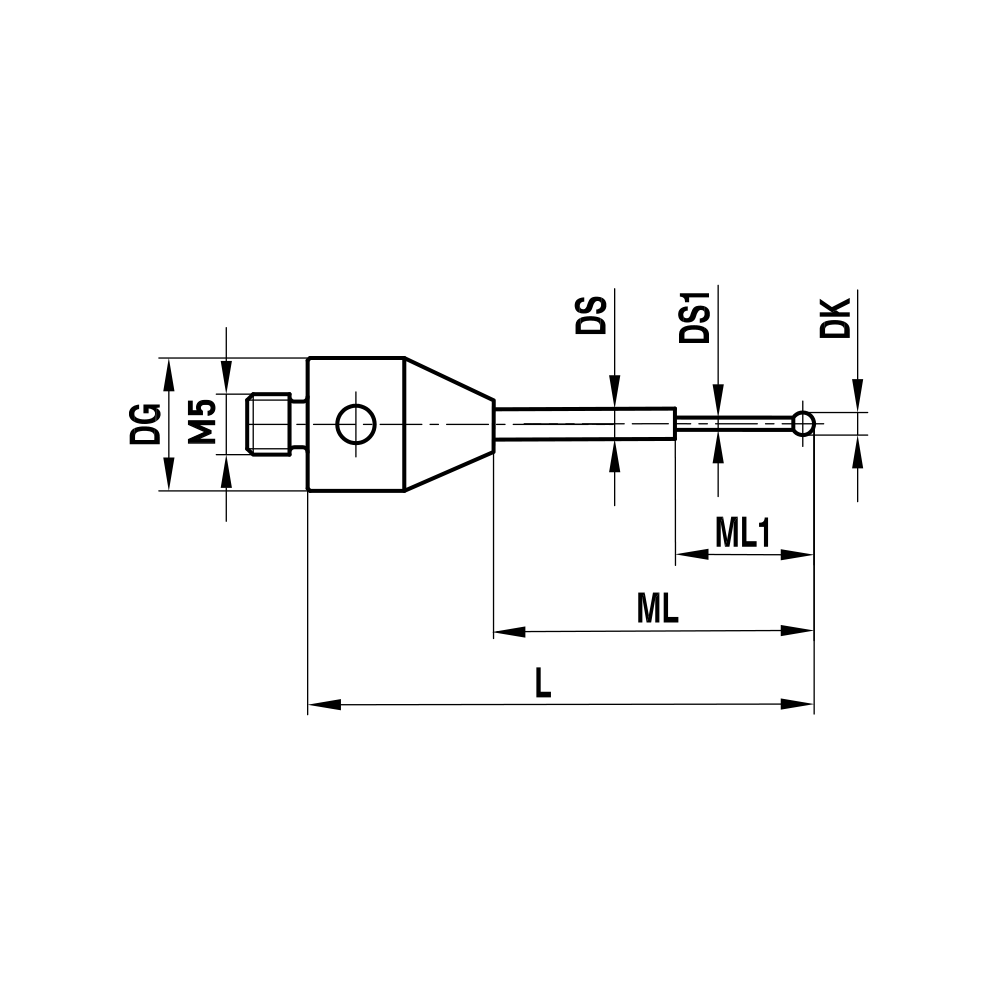

| Thread Size: | M5 |
| DK: | 1.5 mm |
| L: | 30.0 mm |
| DG: | 11.0 mm |
| ML: | 20.0 mm |
| Ml (1): | 8.0 mm |
| DS: | 1.5 mm |
| Ds (1): | 1.0 mm |
| Thread size: | M5 |
| Probe Ball Material: | Silicon Nitride |
| Stem Material: | Carbide |
| Base Material: | Titanium |
| Weight: | 3.6 g |
| Designation "/K" in part# indicates sphere is cup mounted and glued to the stem. | |
| 1.50 mm Ball; 2 30.0 mm Total Length | |
