M5 Stepped-stem Stylus
Ruby Ball , Carbide Stem , Stainless Steel Base
1.0 mm Ball; 13.5 mm Measuring Length; 22.5 mm Total Length
M5 Stepped-stem Stylus
Ruby Ball , Carbide Stem , Stainless Steel Base
| Order-No.: | NH M5 010 11 022 |
|---|---|
| Price: | $53.00 |

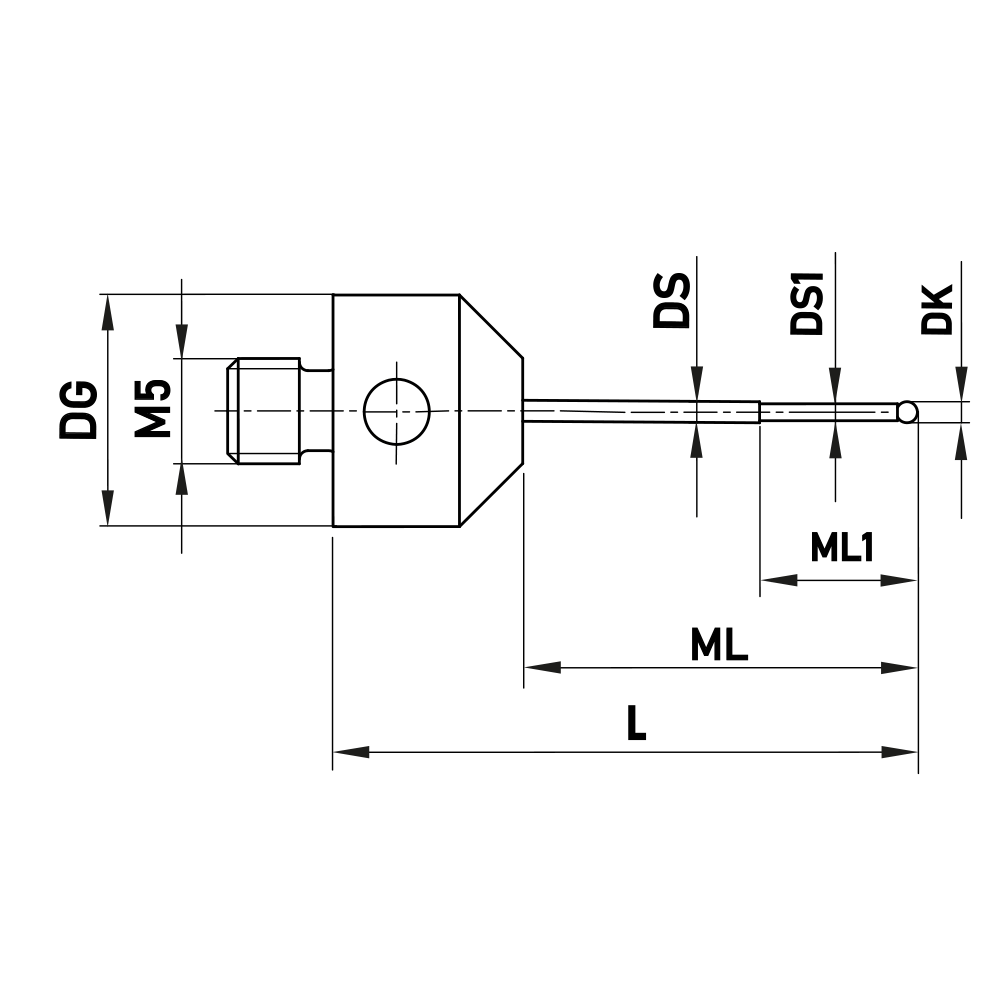

| Thread Size: | M5 |
| DK: | 1.0 mm |
| L: | 22.5 mm |
| DG: | 11.0 mm |
| ML: | 13.5 mm |
| Ml (1): | 5.0 mm |
| DS: | 1.0 mm |
| Ds (1): | 0.8 mm |
| Thread size: | M5 |
| Probe Ball Material: | Ruby |
| Stem Material: | Carbide |
| Base Material: | Stainless Steel |
| Weight: | 5.7 g |
| Design Your Own customized specials manufactured to your specifications. | |
| 1.0 mm Ball; 13.5 mm Measuring Length; 22.5 mm Total Length | |
Compare to:
| Zeiss: | 626115-0100-022 |
|---|---|
| Renishaw: | A-5555-0334 |
| Carbide: |
Cpz000-1020 Cpz000-1020C Cpz000-1025 |
