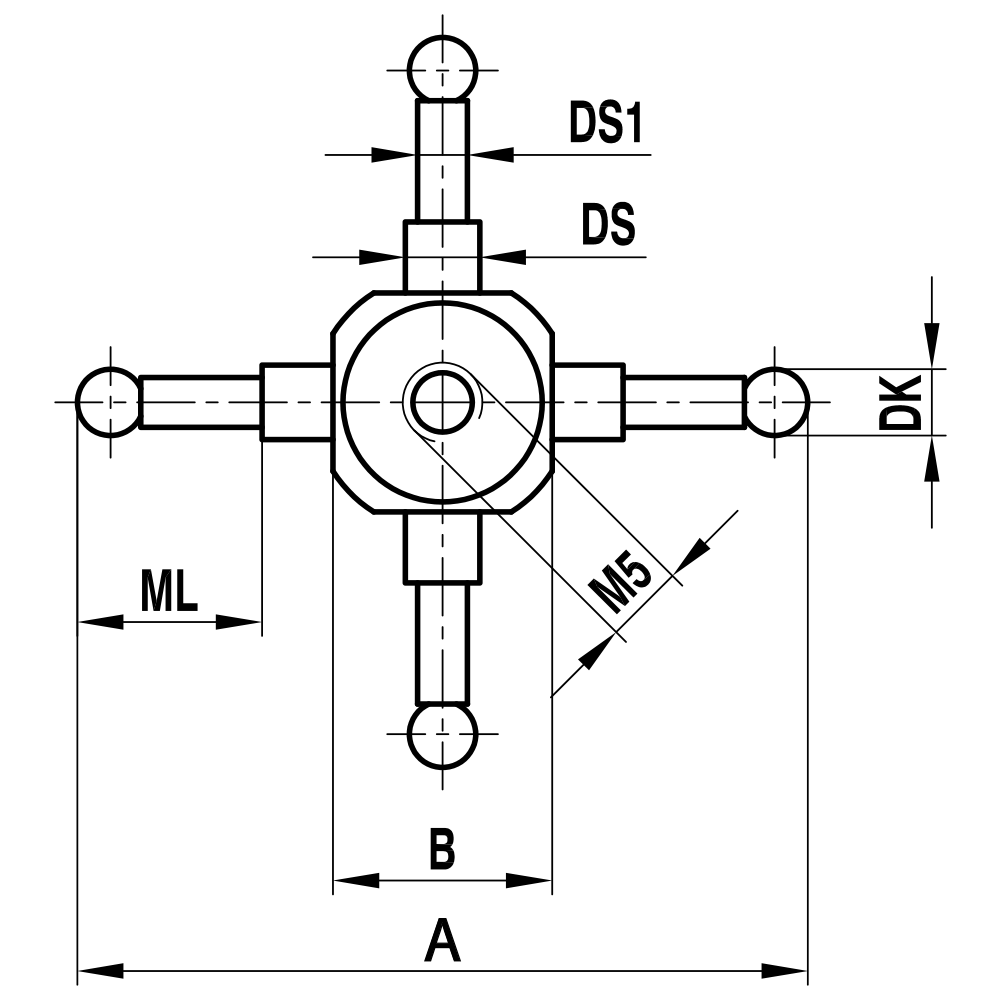

This piece is non-clocking, and the four styli are fixed. There is one empty M5 thread on the bottom of the cube.
Ruby balls, peg mounted. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.
| Sphere-Ø mm DK | Measure. len. mm ML | Total length mm L | Shaft-Ø mm DS1/DS | Edge length mm B | Weight g | Price/piece |
|---|---|---|---|---|---|---|
| 2.5 | 8.0 | 45.0 | 1.5 / 2.0 | 15.0 | 17.3 | 219.00 |
