This styli is designed to be used with Zeiss XXT probing systems.
Peg mounted balls, except for ball-Ø 0,3 mm – 0,6 mm. Special designs on request.
All existing ball materials are available upon request for all styli and all thread sizes.

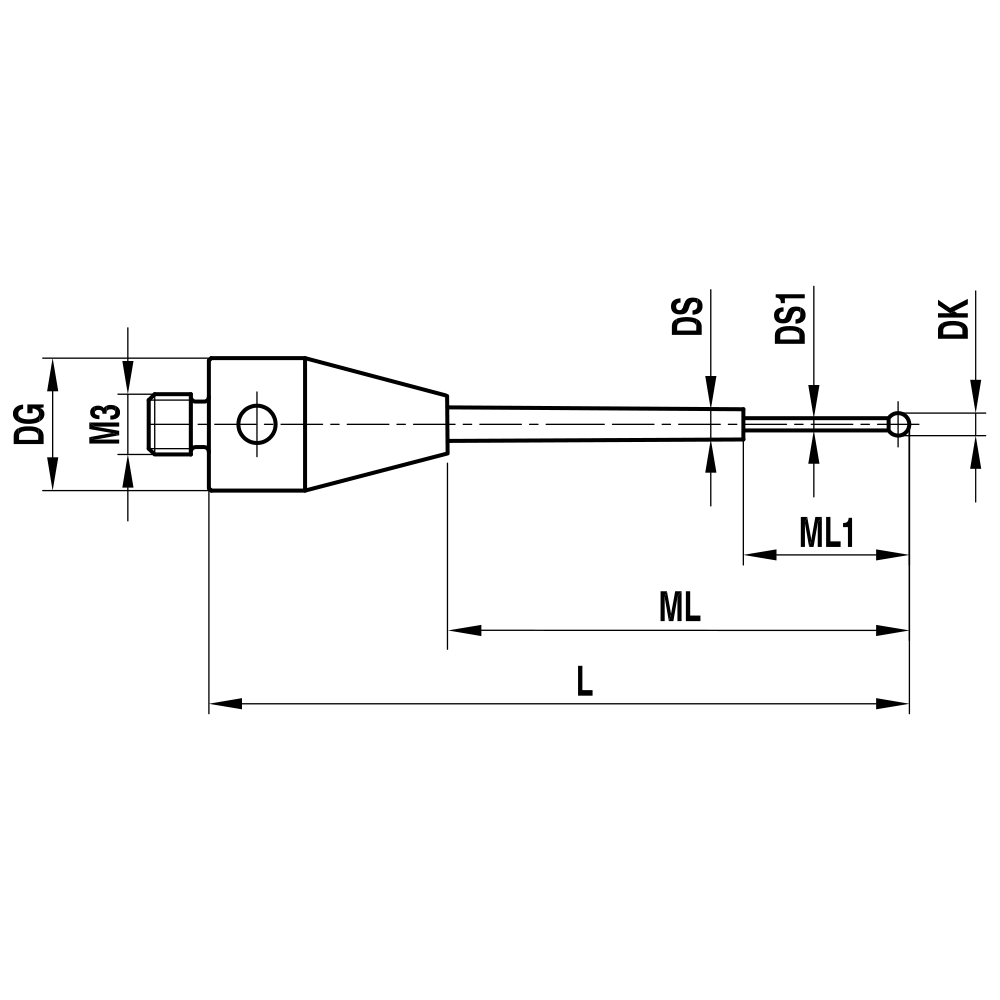

| Sphere-Ø mm DK | Measure. len. mm ML1/ML | Body-Ø mm DG | Total length mm L | Shaft-Ø mm DS1/DS | Weight g | Price/piece |
|---|---|---|---|---|---|---|
| 0.6 | 4.6/11.0 | 5.0 | 20.0 | 0.4/1.0 | 0.68 | 86.00 |
