M3 - Carbide Styli XXT
Titanium base, carbide shaft, ruby ball

TH M3 005 05 013

This stylus is designed to be used with Zeiss XXT probing systems.
Peg mounted balls, except for ball-Ø 0,3 mm – 0,6 mm. Special designs on request.
All existing ball materials are available upon request for all styli and all thread sizes.

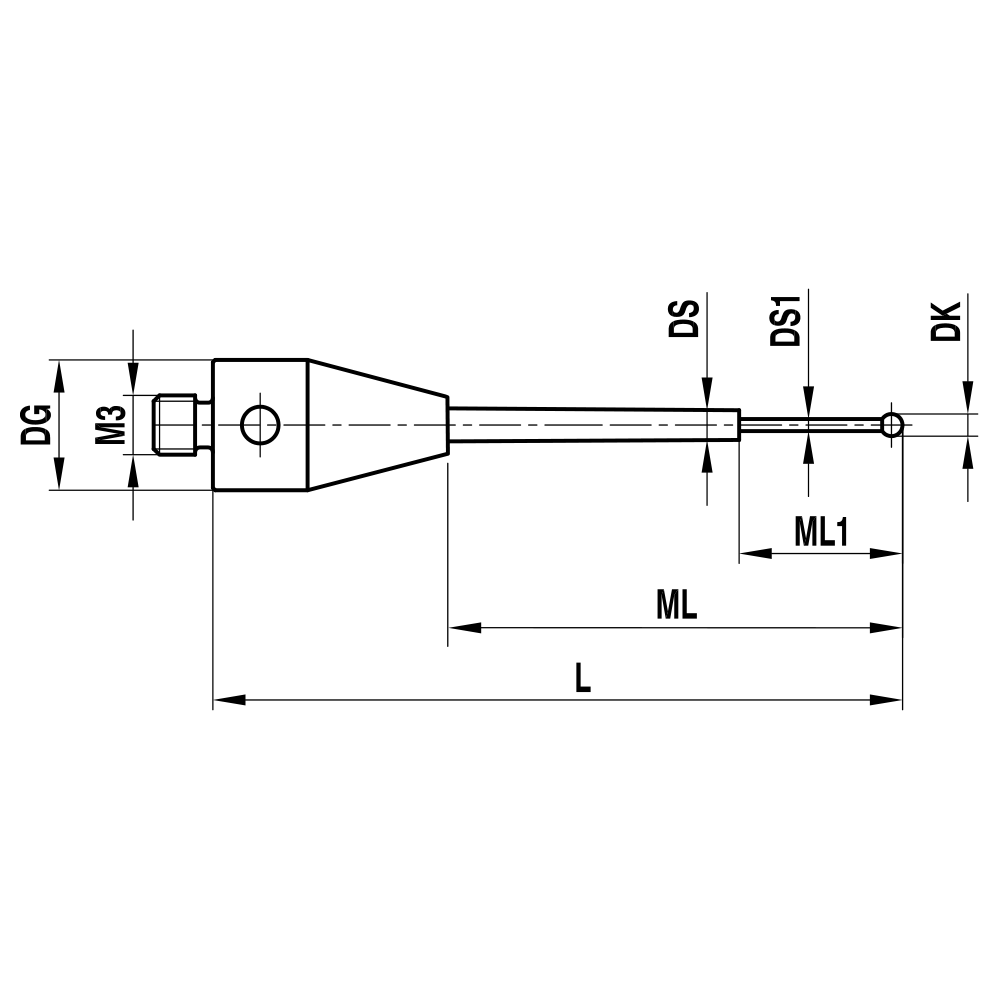

Sphere-Ø mm DK Measure. len. mm ML1/ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS1/DS Weight g Price/piece
0.5 2.3/4.0 5.0 13.0 0.3/1.0 0.61 95.00
