M2 Straight Scanning Stylus
Silicon Nitride Ball , Carbide Stem , Stainless Steel Base
1.0 mm Ball; 7.5 mm Measuring Length; 20.5 mm Total Length
M2 Straight Scanning Stylus
Silicon Nitride Ball , Carbide Stem , Stainless Steel Base
| Order-No.: | TH M2 S10 03 020 |
|---|---|
| Price: | $82.00 |

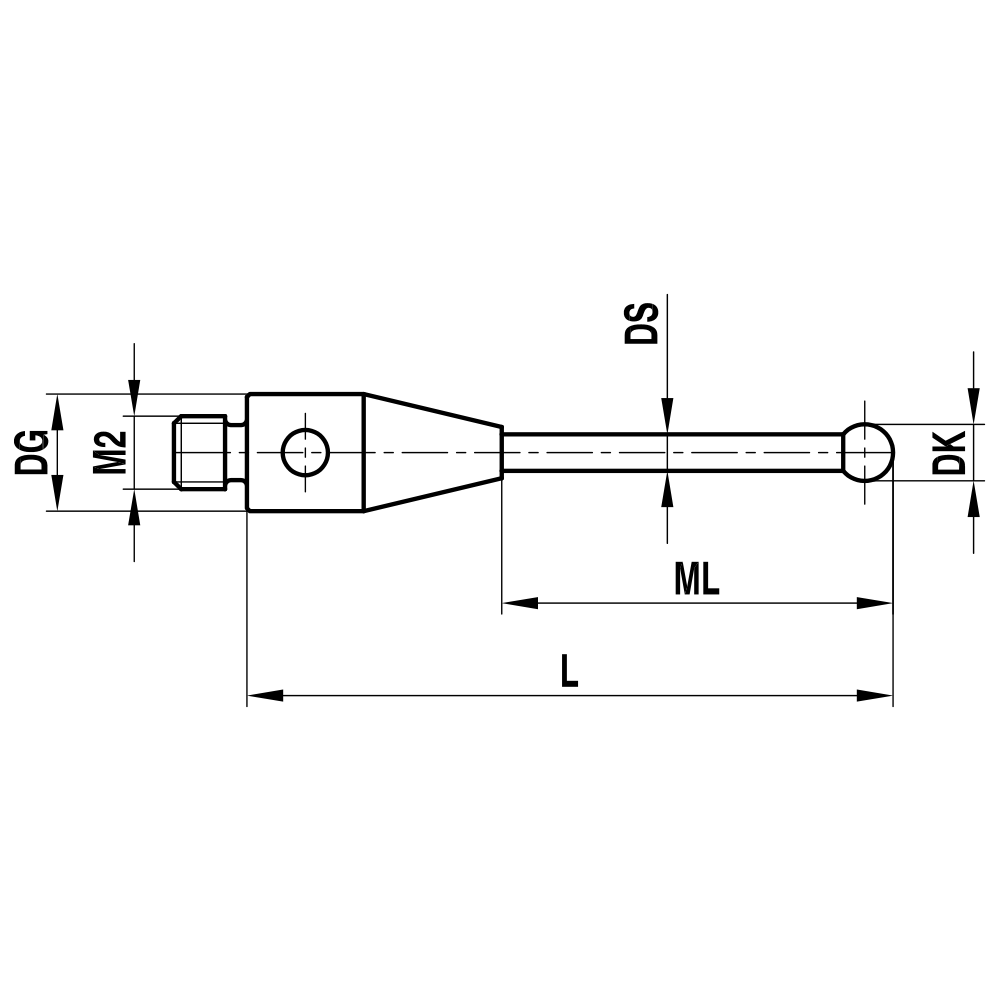

| Thread Size: | M2 |
| DK: | 1.0 mm |
| L: | 20.5 mm |
| DG: | 3.0 mm |
| ML: | 7.5 mm |
| DS: | 0.7 mm |
| Thread size: | M2 |
| Probe Ball Material: | Silicon Nitride |
| Stem Material: | Carbide |
| Base Material: | Stainless Steel |
| Weight: | 0.6 g |
| Design Your Own customized specials manufactured to your specifications. | |
| 1.0 mm Ball; 7.5 mm Measuring Length; 20.5 mm Total Length | |
