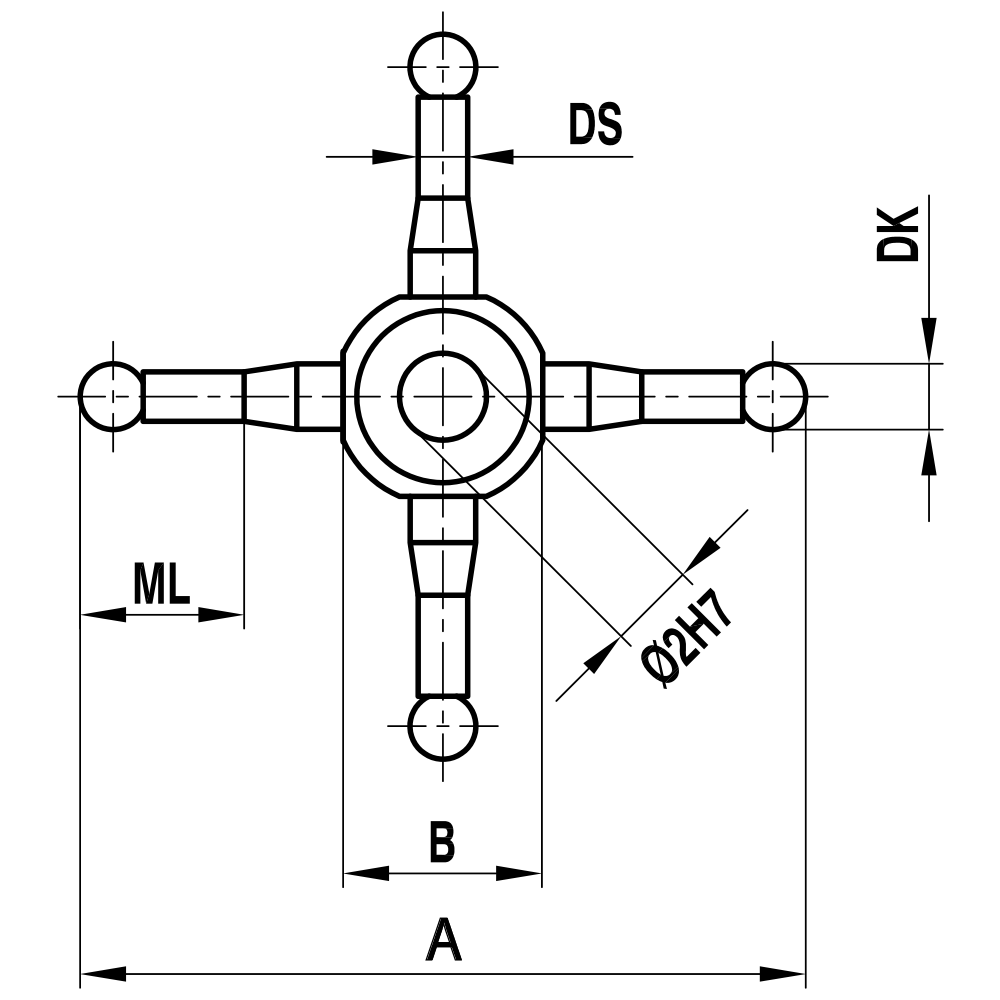

This configuration allows the horizontal arms to be clocked by vertically inserting one stylus with extended threads. Vertical styli sold separately. Horizontal arms are fixed.
Ruby ball, peg mounted. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.
| Sphere-Ø mm DK | Measure. len. mm ML | Total length mm L | Shaft-Ø mm DS | Edge length mm B | Weight g | Price/piece |
|---|---|---|---|---|---|---|
| 2.0 | 9.5 | 32.0 | 1.4 | 5.5 | 1.0 | 91.00 |
