M3 XXT UltraScanning Straight Stylus

Diamond Coated Ball , Carbide Stem , Titanium Base
2.0 mm Ball; 11.0 mm Measuring Length; 20.0 mm Total Length

$660.00

TH M3 DC20 05 020

Prices do not include Sales Tax or Shipping Cost.

Email this Description
M3 XXT UltraScanning Straight Stylus
Diamond Coated Ball , Carbide Stem , Titanium Base
Order-No.: TH M3 DC20 05 020
Price: $660.00

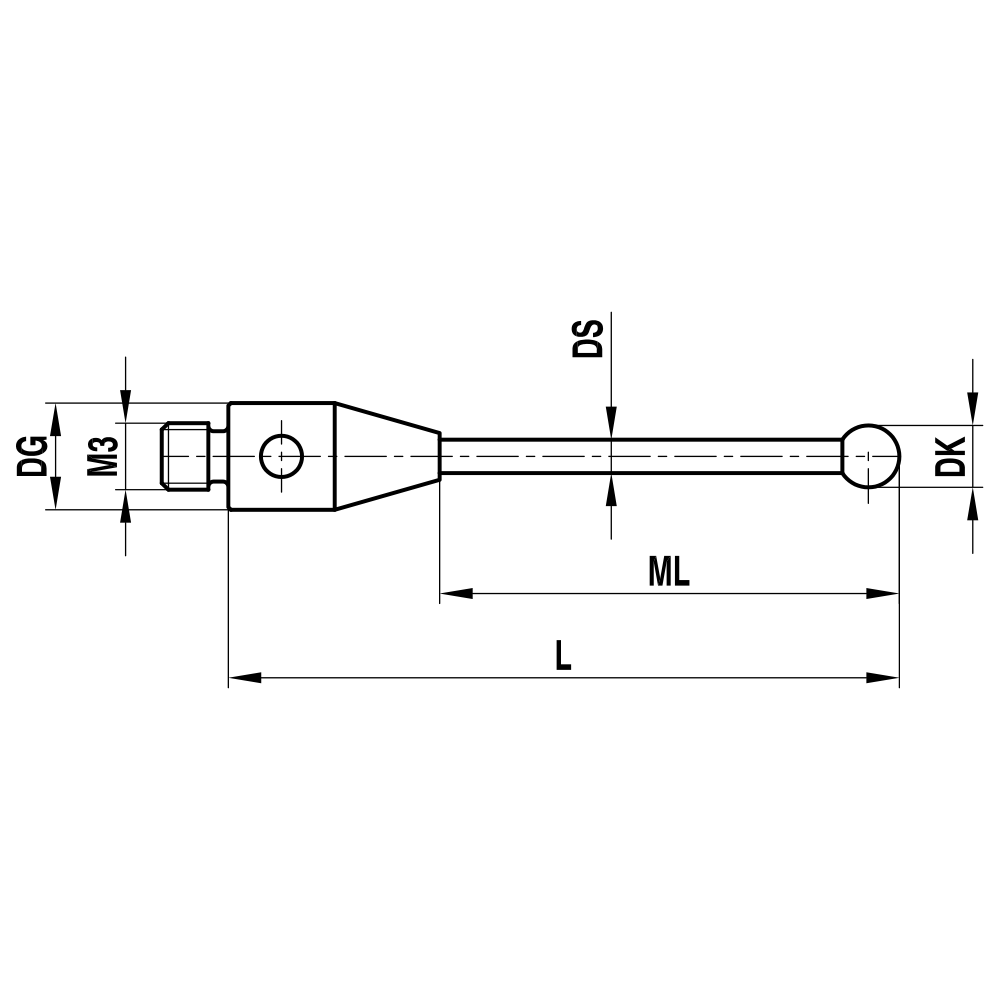

Thread Size: M3 Xxt
DK: 2.0 mm
L: 20.0 mm
DG: 5.0 mm
ML: 11.0 mm
DS: 1.0 mm
Thread size: M3 Xxt
Probe Ball Material: Diamond Coated
Stem Material: Carbide
Base Material: Titanium
Weight: 0.7 g
Diamond coated sphere is actively brazed to the stem.
2.0 mm Ball; 11.0 mm Measuring Length; 20.0 mm Total Length
