M3 XXT Clamping, Scanning Stylus
Silicon Nitride Ball , Carbon Fiber Stem , Titanium Base
3.0 mm Ball; 31.0 mm Measuring Length; 40.0 mm Total Length
M3 XXT Clamping, Scanning Stylus
Silicon Nitride Ball , Carbon Fiber Stem , Titanium Base
| Order-No.: | TC M3 S30 05 040/K |
|---|---|
| Price: | $124.00 |

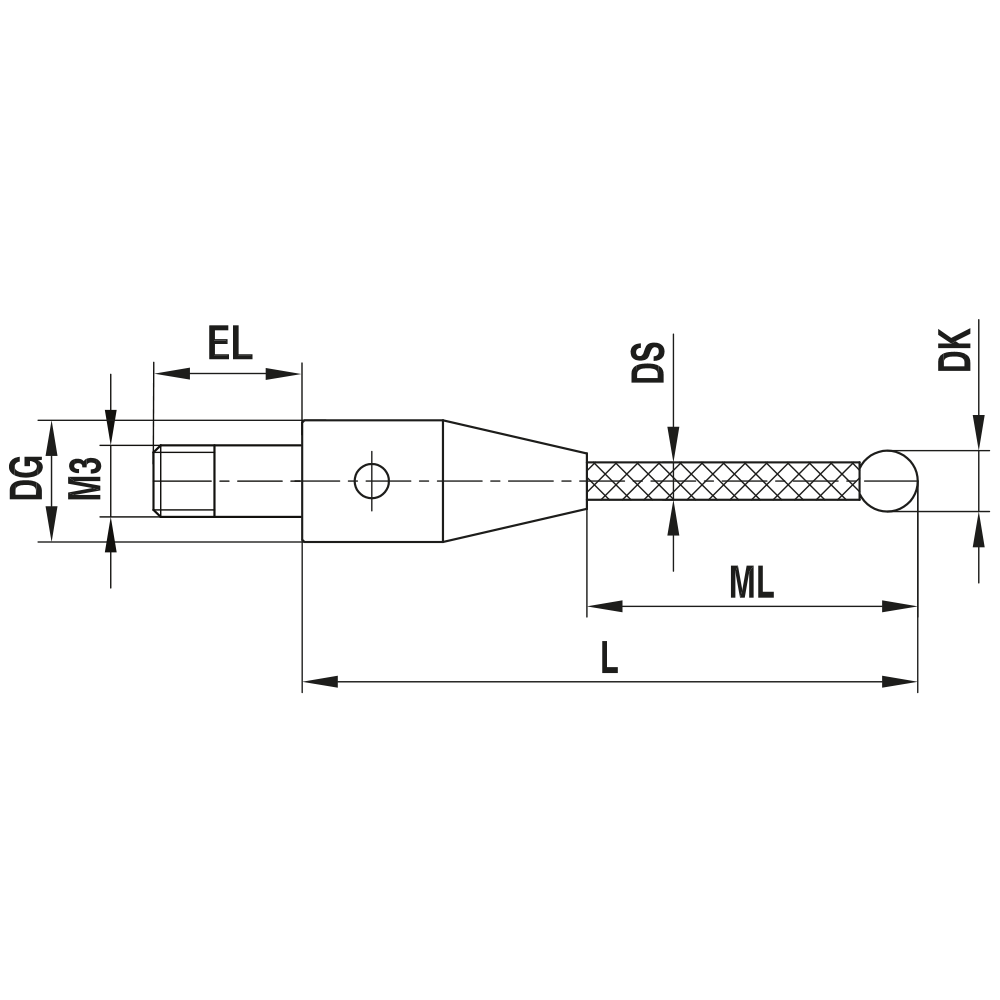

| Thread Size: | M3 Xxt |
| DK: | 3.0 mm |
| L: | 40.0 mm |
| DG: | 5.0 mm |
| EL: | 8.0 mm |
| ML: | 31.0 mm |
| DS: | 2.0 mm |
| Thread size: | M3 Xxt |
| Probe Ball Material: | Silicon Nitride |
| Stem Material: | Carbon Fiber |
| Base Material: | Titanium |
| Weight: | 1 g |
| Designation "/K" in part# indicates sphere is cup mounted and glued to the stem. | |
| 3.0 mm Ball; 31.0 mm Measuring Length; 40.0 mm Total Length | |
Compare to:
| Zeiss: |
626103-0311-040 262103-0311-040 |
|---|---|
| Qmark: | Tm3-3040-Tx-Cs-Sn |
