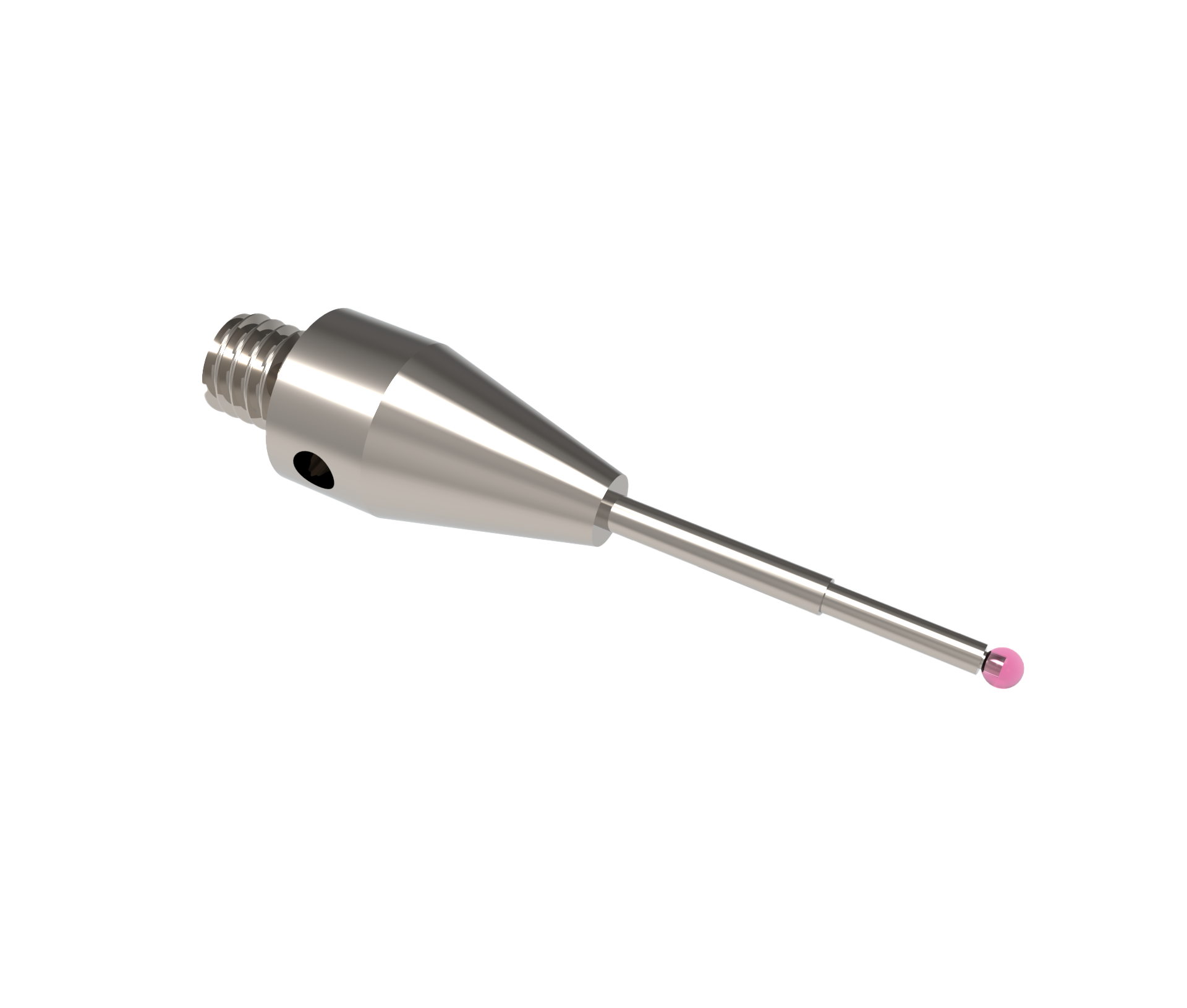

M5 Stepped-base, Stepped-stem Stylus
Ruby Ball , Carbide Stem , Stainless Steel Base
1.0 mm Ball; 12.0 mm Measuring Length; 32.0 mm Total Length
M5 Stepped-base, Stepped-stem Stylus
Ruby Ball , Carbide Stem , Stainless Steel Base
| Order-No.: | FH M5 010 11 032 |
|---|---|
| Price: | $69.00 |

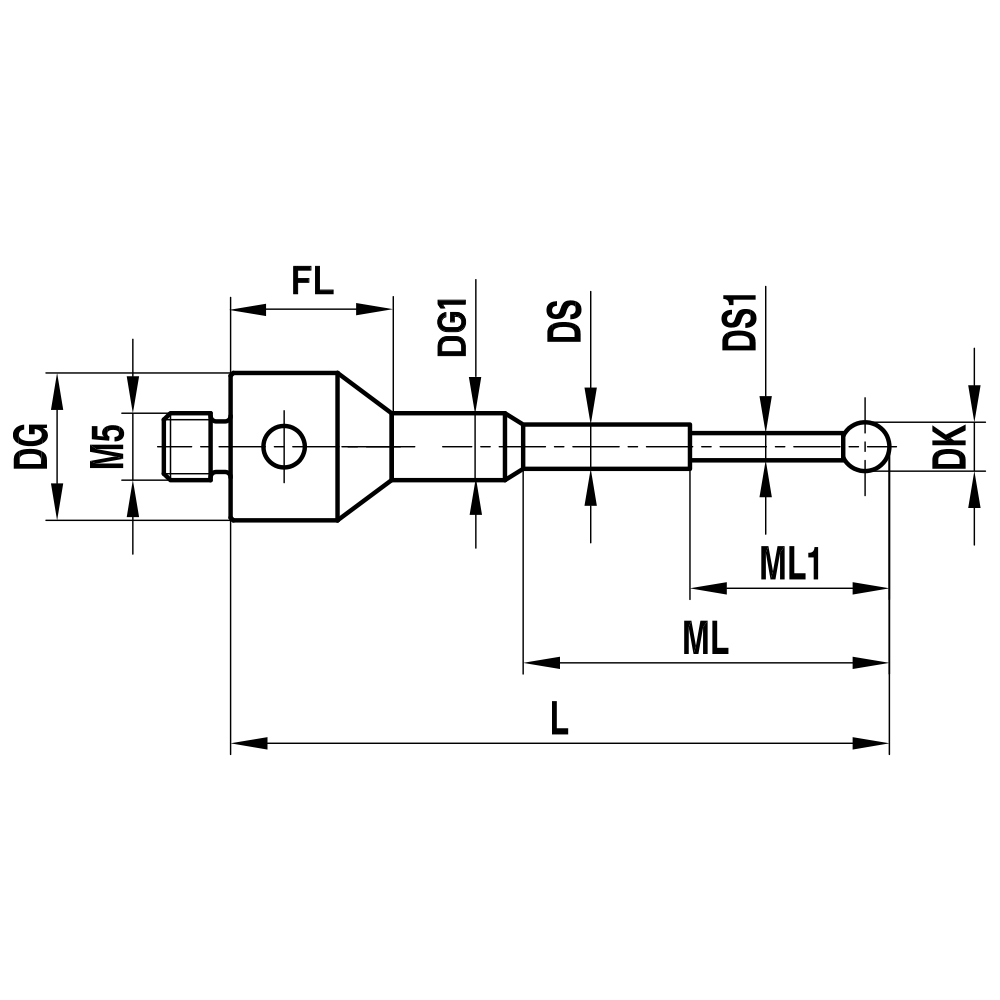

| Thread Size: | M5 |
| DK: | 1.0 mm |
| L: | 32.0 mm |
| DG: | 11.0 mm |
| Dg (1): | 4.0 mm |
| FL: | 9.0 mm |
| ML: | 12.0 mm |
| Ml (1): | 5.0 mm |
| DS: | 1.0 mm |
| Ds (1): | 0.8 mm |
| Thread size: | M5 |
| Probe Ball Material: | Ruby |
| Stem Material: | Carbide |
| Base Material: | Stainless Steel |
| Weight: | 6.5 g |
| Design Your Own customized specials manufactured to your specifications. | |
| 1.0 mm Ball; 12.0 mm Measuring Length; 32.0 mm Total Length | |
Compare to:
| Zeiss: | 602030-8061-000 |
|---|---|
| Renishaw: | A-5555-0053 |
| Carbide: | Cpz030-8061 |
| Qmark: | Afg-1032 |
