How To Clean and Maintain Your CMM Stylus

When it comes to precision measurement, even the smallest detail can make a huge difference in the accuracy of your results. Your CMM stylus plays a vital role in delivering accuracy, but it often bears the brunt of continuous use in demanding environments.

Many variables can quickly compromise the performance of the stylus, leading to errors that cost both time and money. That’s why knowing how to clean and maintain your CMM stylus is critical. With the right care, you can safeguard its accuracy, extend its lifespan, and keep your operations running smoothly. Use the following expert advice to ensure your styli perform at their best every single time.

Why You Should Never Forget CMM Stylus Maintenance

The stylus is the primary contact point for a CMM. Any dirt, residue, or damage compromises measurement accuracy. Inaccuracy leads to incorrect data, failed inspections, and wasted time and resources. Regular maintenance ensures your stylus remains in prime condition, offering several key benefits, including:

  • A clean stylus ensures reliable measurements across inspections.
  • Regular care reduces wear, extending the life of your stylus.
  • Preventive maintenance minimizes the need for costly replacements.

Neglecting your stylus can lead to decreased output quality and costly rework. Poor stylus condition often equates to poor performance, putting the integrity of your entire operation at risk.

Signs Your CMM Stylus Needs Cleaning and Maintenance

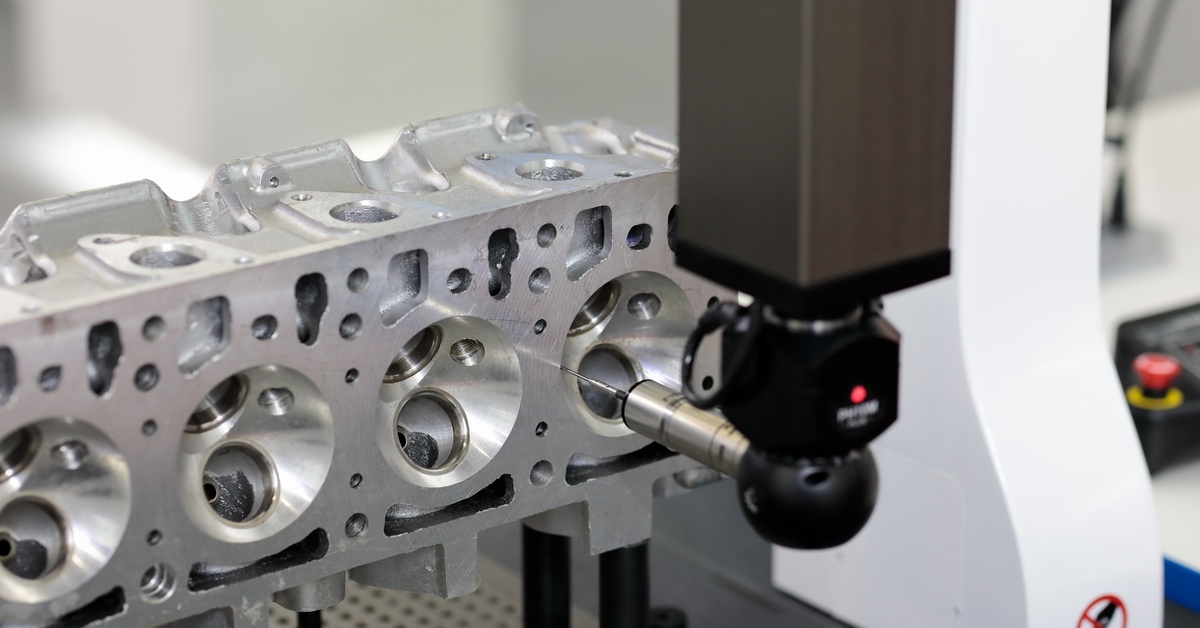

A coordinate measuring machine taking measurements of a metal part with lots of grooves and holes.

It’s essential to recognize when your CMM stylus requires attention. Here are some telltale signs to watch for during routine inspections or operations:

  • Visible dirt or debris: A buildup of residue on the stylus tip or shaft can be seen with the naked eye.
  • Poor measurement repeatability: Erratic or inconsistent measurement results may indicate contamination or wear.
  • Damaged threads or shaft: Look for signs of wear, scratches, or contamination on threaded connections.
  • Reduced interaction with the workpiece: If the stylus isn’t maintaining proper contact or is producing outlier data, it may require cleaning or replacement.

Step-by-Step Guide to Cleaning Your CMM Stylus

Cleaning your CMM stylus requires precision and the right approach. Follow the steps below to ensure your stylus stays in top condition.

1. Gather the Right Tools

Before starting, make sure you have the correct cleaning materials on hand. Common tools include:

  • A lint-free microfiber cloth
  • Isopropyl alcohol or a specialized cleaning solution
  • A small, soft brush (e.g., a toothbrush with ultra-soft bristles)
  • Compressed air (optional)

2. Inspect the Stylus Before Cleaning

Examine your stylus thoroughly under adequate lighting or with a magnifying lens. Look for dirt, residue, or other contaminants on the stylus tip, shaft, and threads. This step helps you identify any areas that require special attention during cleaning and ensures the stylus is structurally intact.

3. Clean the Stylus Tip

The stylus tip is the most critical part of your stylus. Gently clean the tip using a lint-free microfiber cloth lightly moistened (but not dripping) with isopropyl alcohol or a specialized cleaning solution. For tighter spaces or spherical tips, use a soft brush if necessary.

4. Clean the Shaft and Threads

Move on to the shaft and threaded connection. Again, use a microfiber cloth and cleaning solution to gently wipe these components. For crevices in the threads, consider using a fine, soft brush for effective cleaning. Be cautious not to leave any moisture or fibers behind.

5. Allow the Stylus To Dry

Once cleaned, ensure the stylus is completely dry before reassembly or use. Air drying is often adequate, but you can use compressed air to speed up the process. Please note that you must be careful when using compressed air to prevent damage to the stylus. Ensuring complete dryness prevents residue buildup or contamination from leftover moisture.

Common Mistakes To Avoid When Cleaning Your CMM Styli

Cleaning your CMM styli is crucial, but doing it incorrectly can lead to damage or inefficiencies. Here are some mistakes to watch out for:

  • Using abrasive materials: Avoid anything too coarse that could scratch or damage the stylus.
  • Skipping inspections: Cleaning without a pre-inspection may cause you to overlook specific damage or dirt buildup.
  • Excessive force: Applying too much pressure while cleaning, especially on the stylus tip, can lead to permanent damage.
  • Using the wrong cleaning solutions: Harsh chemicals can degrade the material of your stylus. Always stick to recommended solutions.

Best Practices for Maintaining Your CMM Stylus

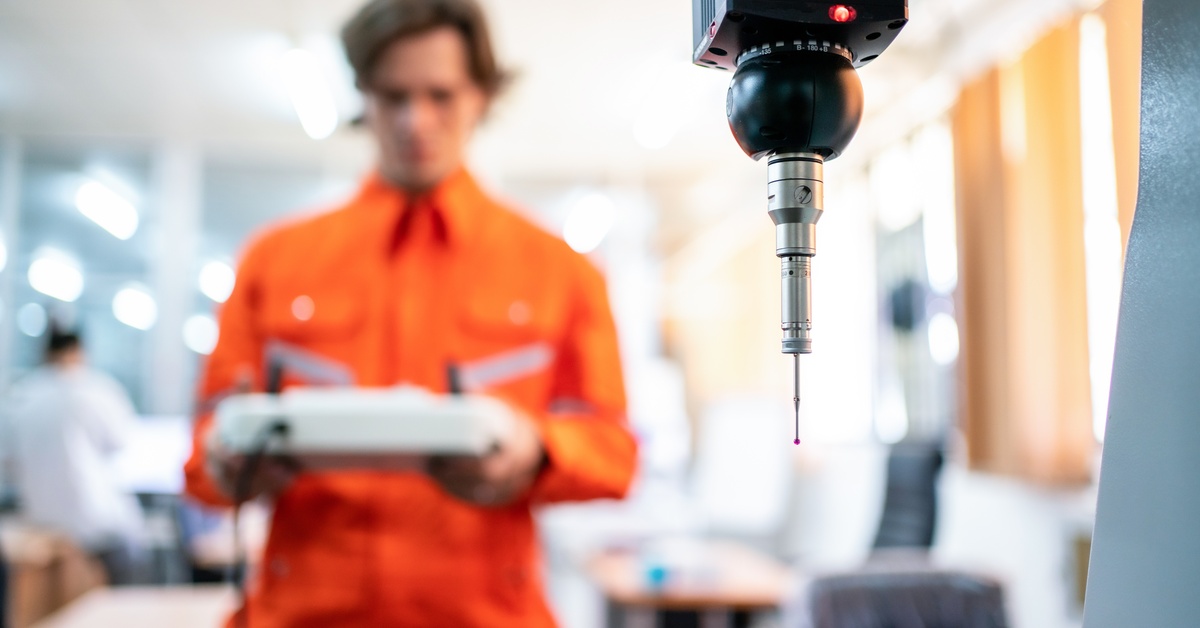

A coordinate measuring machine ready for use. A man wearing an orange jumpsuit holds the controls of the machine.

Long-term success relies on a proactive maintenance routine. Here are some best practices to follow for keeping your stylus in peak condition.

Regular Cleaning Schedule

Create a consistent cleaning schedule tailored to the frequency and intensity of your CMM’s use. For high-demand environments, consider cleaning the stylus after every shift or batch of inspections.

Proper Storage

When not in use, store your stylus in protective cases designed for them. Keeping styli safe from dust, dirt, and accidental damage ensures their longevity.

Handle With Care

Always handle the stylus with clean, dry hands, or use gloves to avoid transferring oils or dirt. Be gentle when assembling or disassembling styli, taking care to avoid cross-threading.

Replace Worn or Damaged Styli

Even with excellent care, styli will eventually wear out. Replace worn-out or damaged styli promptly to maintain measurement accuracy. When replacing, consider compatible options such as CMM stylus extensions to enhance accessibility and performance.

How To Test Your Stylus After Cleaning

Before returning a cleaned stylus to active use, test it to ensure it is functioning correctly. Recalibrate your CMM system and run test measurements to verify accuracy. Compare these results to previous benchmarks to confirm consistency. If discrepancies persist, the stylus may require further cleaning or replacement.

Maintaining a regular cleaning and inspection routine is indispensable for consistent measurement precision and enhanced operational efficiency. By following these detailed steps on how to clean and maintain your CMM stylus, you’ll ensure that your device performs optimally throughout its lifespan.

A well-maintained CMM stylus is the foundation of accurate data in your workflows. Take the time to care for it, and it will continue to provide the reliability and performance you depend on.

If you’re looking for expert support or high-quality replacements for your CMM stylus needs, explore Itpstyli’s extensive catalog of CMM accessories. We even offer custom solutions that guarantee accuracy no matter the industry or application. Take your operations to the next level!
