Common CMM Stylus Failures and How To Prevent Them

Precision is everything when your reputation relies on flawless measurements. Even a minor stylus issue can trigger production setbacks and costly rejects. If you need to stay ahead in quality control, common CMM stylus failures and how to prevent them should be on your radar. Proactive solutions can help you deliver consistent, reliable results every time.

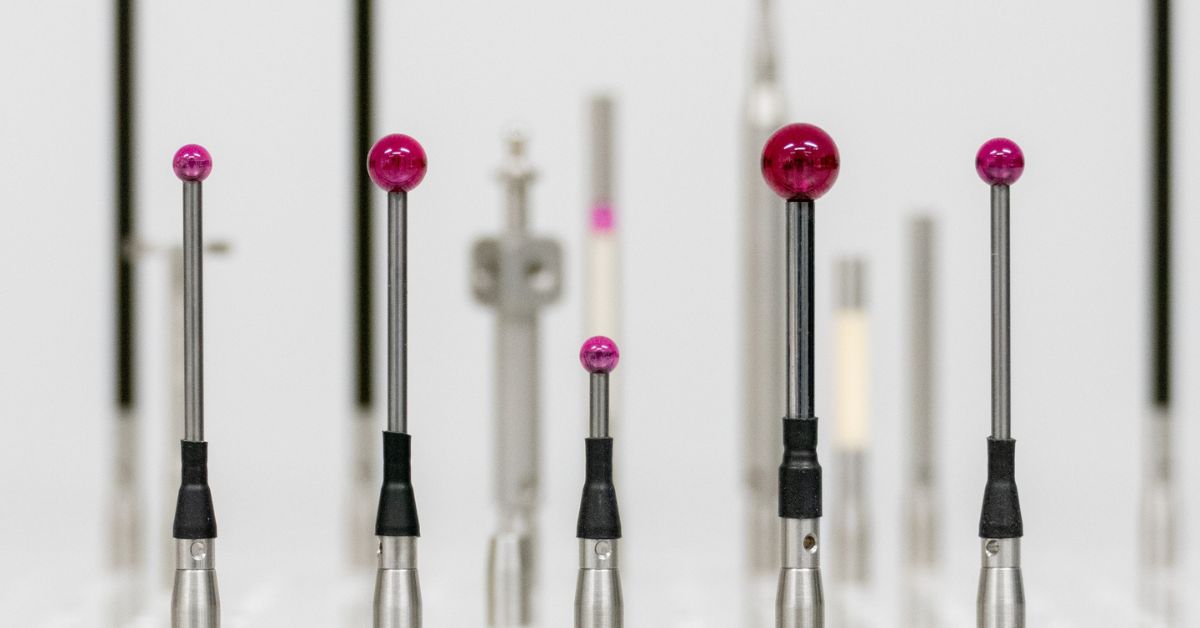

Ball Wear and Flat Spots

What It Looks Like

Upon close inspection, the stylus ball, which should be perfectly spherical, may show a flattened area or visible wear on its surface. These defects can alter the contact point during measurement, leading to numerous inaccuracies in the collected data.

Why It Happens

Ball wear arises from repeated contact with abrasive surfaces or from scanning applications where the stylus is in continuous contact with the part. Over time, friction wears down the ball's material. Using a softer stylus ball material than the component being measured accelerates this process.

How To Prevent It

Select a stylus ball made from a material harder than the surface you are measuring, such as ruby, silicon nitride, or diamond. Regularly rotate the stylus or probe head to distribute wear across the ball's surface. Periodic requalification of the stylus tip also helps compensate for minor wear patterns.

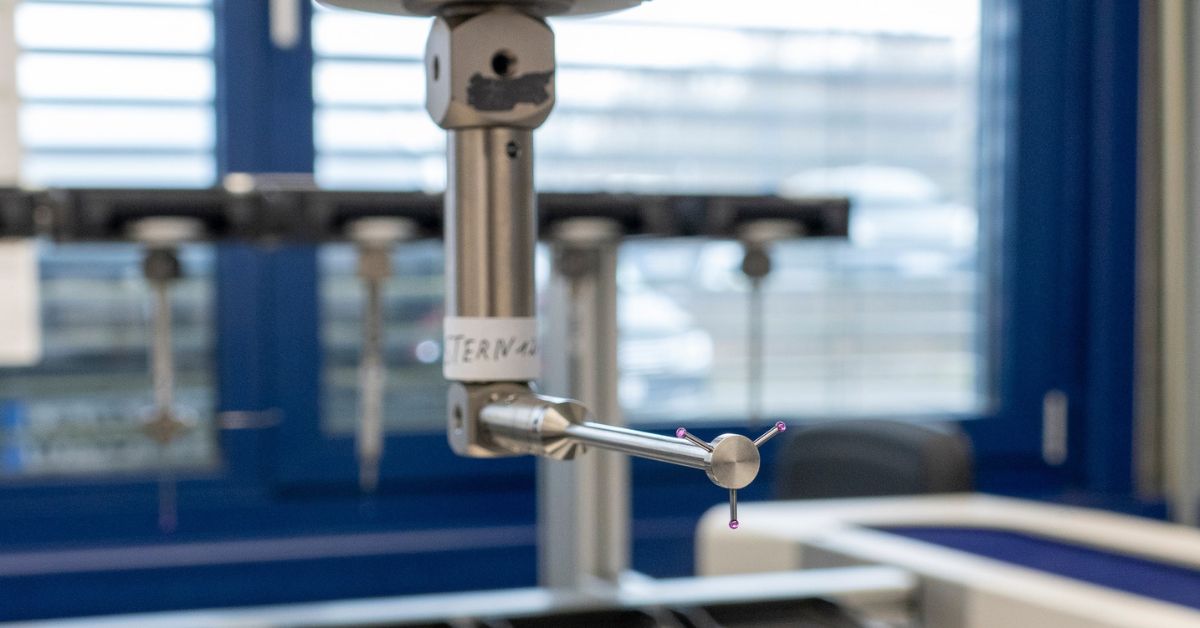

Stem Bending or Deflection

What It Looks Like

The stylus stem, which connects the ball to the probe body, appears visibly bent, or it flexes excessively during measurement. Even a slight, imperceptible bend can introduce serious errors by changing the effective offset of the stylus tip.

Why It Happens

Stem bending is typically caused by excessive probing force, unintended impact with the workpiece, or using a stylus that is too long or slender for the application. The force applied during contact can cause the stem to deflect, and a severe impact can bend it permanently. Material choice for the stem also plays a crucial role in its rigidity.

How To Prevent It

Use the shortest and most rigid stylus possible for your specific measurement task. Materials like carbon fiber offer superior stiffness compared to steel, reducing deflection. Program your CMM with appropriate probing speeds and safe movement paths to minimize the risk of accidental collisions.

Connection Point Failures

What It Looks Like

The threaded connection between the stylus and the probe module becomes loose, stripped, or damaged. A poor connection can cause the stylus to wobble or shift during a measurement, resulting in inconsistent, unreliable readings.

Why It Happens

Frequent stylus changes without proper care can lead to wear on the threads over time. Overtightening the stylus can strip the delicate threads, while an under-tightened stylus can vibrate loose during machine operation. Contaminants such as dust or oil that get into the threads can also degrade the connection quality.

How To Prevent It

Tighten the stylus to the manufacturer's recommended torque specification using a dedicated stylus tool; avoid overtightening by hand. Keep the threads on both the stylus and the probe module clean and free of debris. Inspect the connection points regularly for any signs of wear or damage that could compromise the stability of the assembly.

Contamination and Build-Up on the Ball

What It Looks Like

A visible layer of debris, oil, or material residue accumulates on the surface of the stylus ball. This build-up effectively increases the diameter of the stylus tip, which skews measurement data by altering the point of contact.

Why It Happens

Build-up problems occur when measuring parts that are not perfectly clean, as contaminants from the workpiece can transfer to the stylus. Material transfer, also known as adhesive wear, can occur when measuring softer materials such as aluminum. The stylus can pick up tiny particles that adhere to its surface.

How To Prevent It

Clean the stylus ball regularly with a lint-free cloth and an approved cleaning solution, such as isopropyl alcohol. It is also important to clean the workpiece thoroughly before beginning the measurement process. For applications involving softer materials, consider a stylus ball material such as silicon nitride, which is less prone to adhesive wear.

Thermal Expansion and Environmental Drift

What It Looks Like

Measurement results show inconsistency and drift over time, even when measuring the same feature repeatedly. These errors are not linked to a visible defect on the stylus but are a result of environmental changes affecting the CMM and the stylus assembly.

Why It Happens

Variations in ambient temperature cause the CMM, the workpiece, and the stylus to expand or contract at different rates. For instance, a long steel stylus will change length more significantly than a shorter one made from carbon fiber when the temperature fluctuates.

How To Prevent It

Maintain a stable, temperature-controlled environment for your CMM, ideally at 20°C (68°F). Use styli made from materials with low thermal expansion coefficients, such as carbon fiber or ceramic, especially for long styli or applications requiring high precision. Allow the workpiece and the CMM to acclimate to the room temperature before starting any critical measurements.

Collision Damage

What It Looks Like

Damage from collision is the most obvious form of failure, ranging from a shattered ruby ball to a bent or broken stem. Any visible crack, chip, or deformation following an impact indicates that the stylus is compromised and can no longer provide accurate measurements.

Why It Happens

Collisions are typically the result of programming errors, incorrect workpiece setup, or unexpected fixture movement. A wrong coordinate system, an improperly defined clearance plane, or an operator error can all lead to the probe crashing into the part or fixture. A severe impact can damage the stylus, but even more so the high-cost probe head.

How To Prevent It

Verify CMM programs through simulations or dry runs at a reduced speed before executing them on a part. Double-check part orientation and clamping to match the program's setup. Incorporating probe-crash protection features and training operators in proper machine handling are essential preventive measures.

When To Replace a Stylus Before It Fails

Proactive replacement is part of a robust quality process. A stylus should be considered a consumable item with a finite lifespan. It is advisable to replace styli and CMM stylus extensions on a predetermined schedule based on usage, especially in high-volume production environments.

If a stylus begins to fail qualification more frequently or if visual inspection reveals any signs of wear, a flat spot, or damage, replace it immediately. Waiting for a complete failure is a reactive approach that puts your part quality at risk.

By understanding the common CMM stylus failures and how to prevent them, you can protect the integrity of your measurement data and the efficiency of your operations.
